Ballistic Advantage AR-15 Logic M-LOK Handguard

Ballistic Advantage AR-15 Logic M-LOK Handguard

Welcome to the new standard of rail system in the Ballistic Advantage Logic Handguard. We believe that the customer’s ability to customize their handguard with any accessory they want, wherever they want, is extremely important; the Logic Handguard does just that. A full-top Picatinny rail and seven sides of M-LOK allow for as many attachment and accessory options as possible.

Machined from 6061-T6 Aluminum, the Logic line of handguards is designed with size, comfort, and functionality in mind. Our Logic handguards utilize the proprietary Aero Taper Lock Attachment System. This durable and dependable mounting platform maintains a slim profile while still providing the strength and stability customers have come to love.

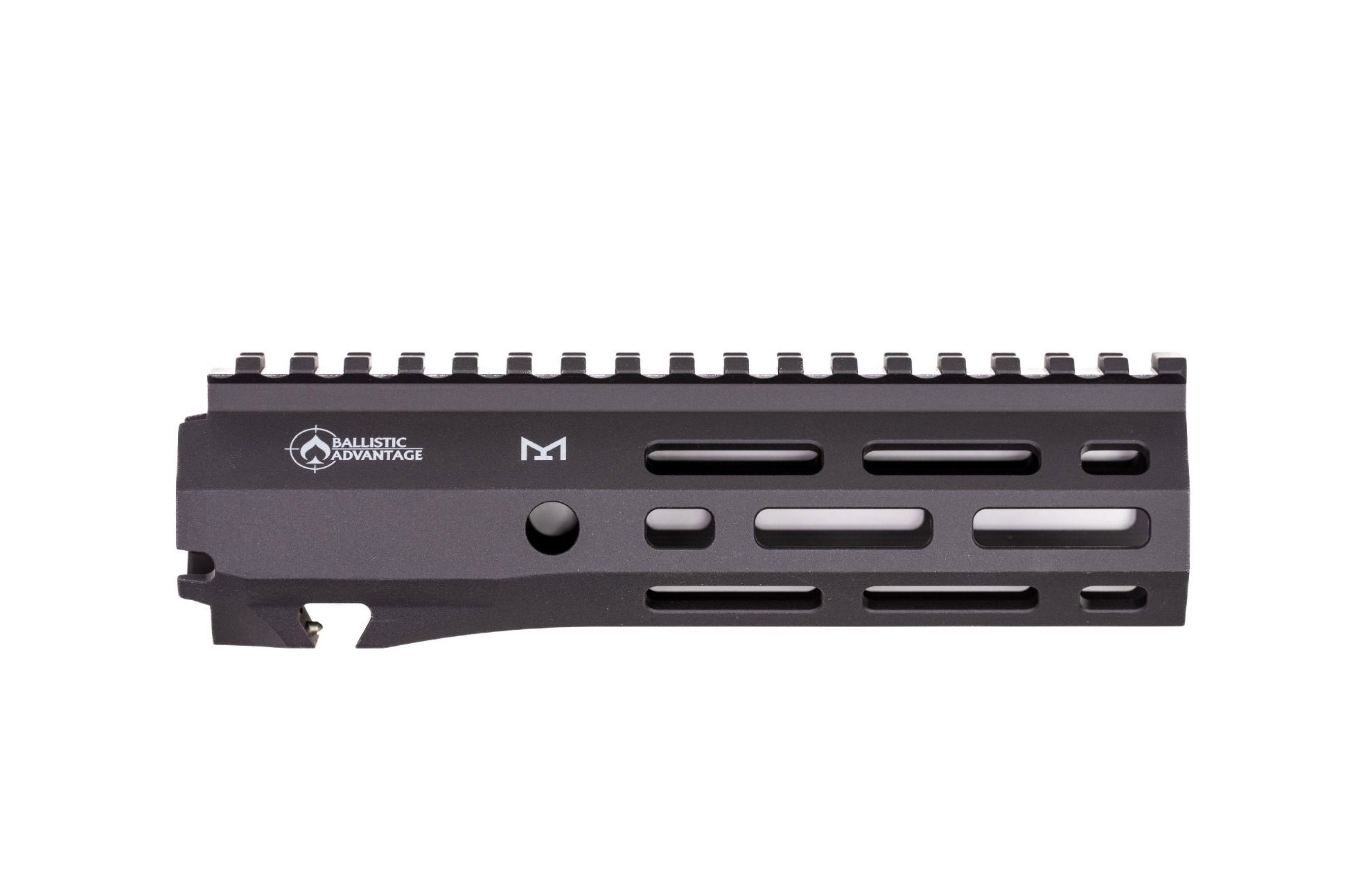

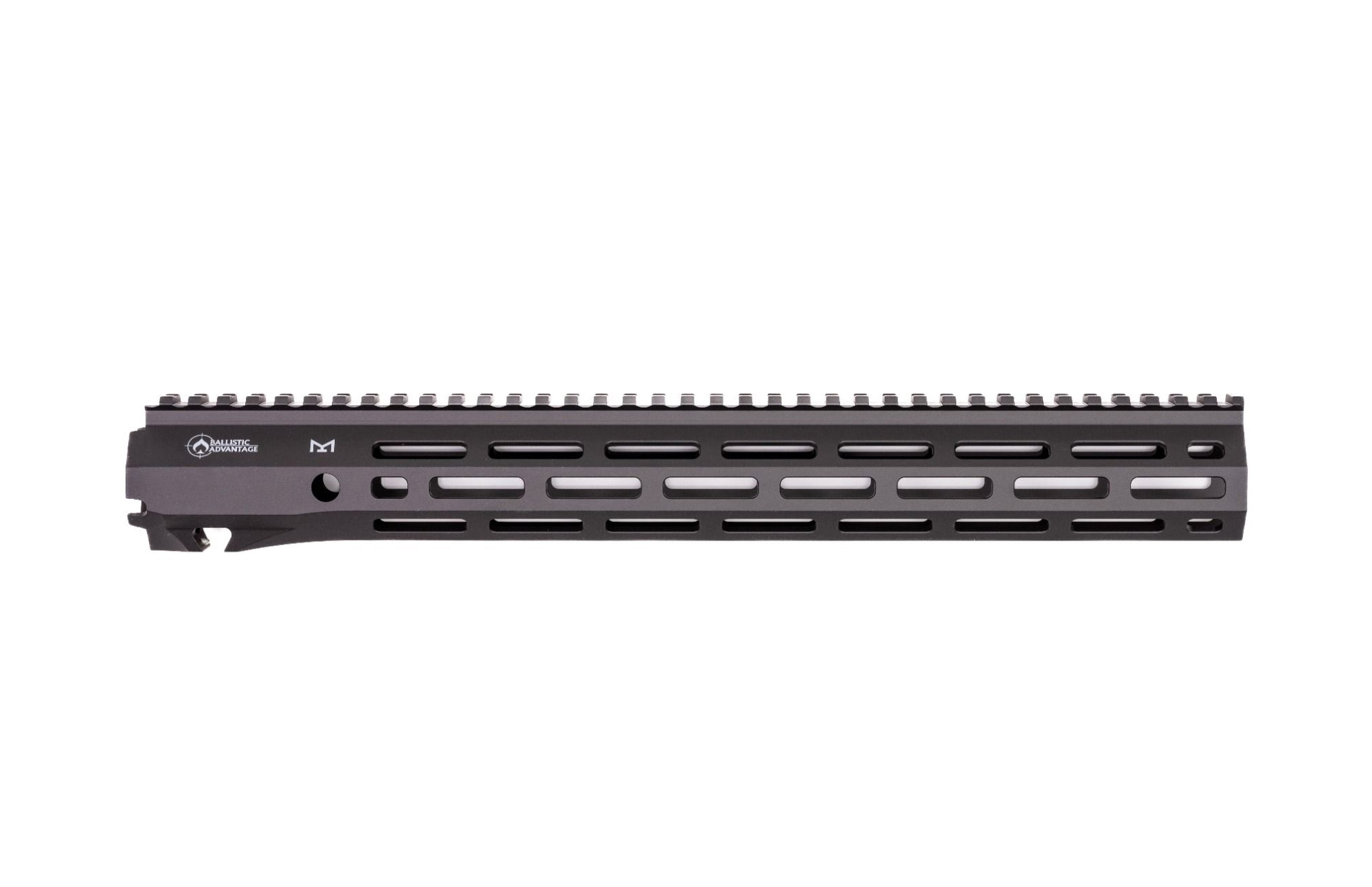

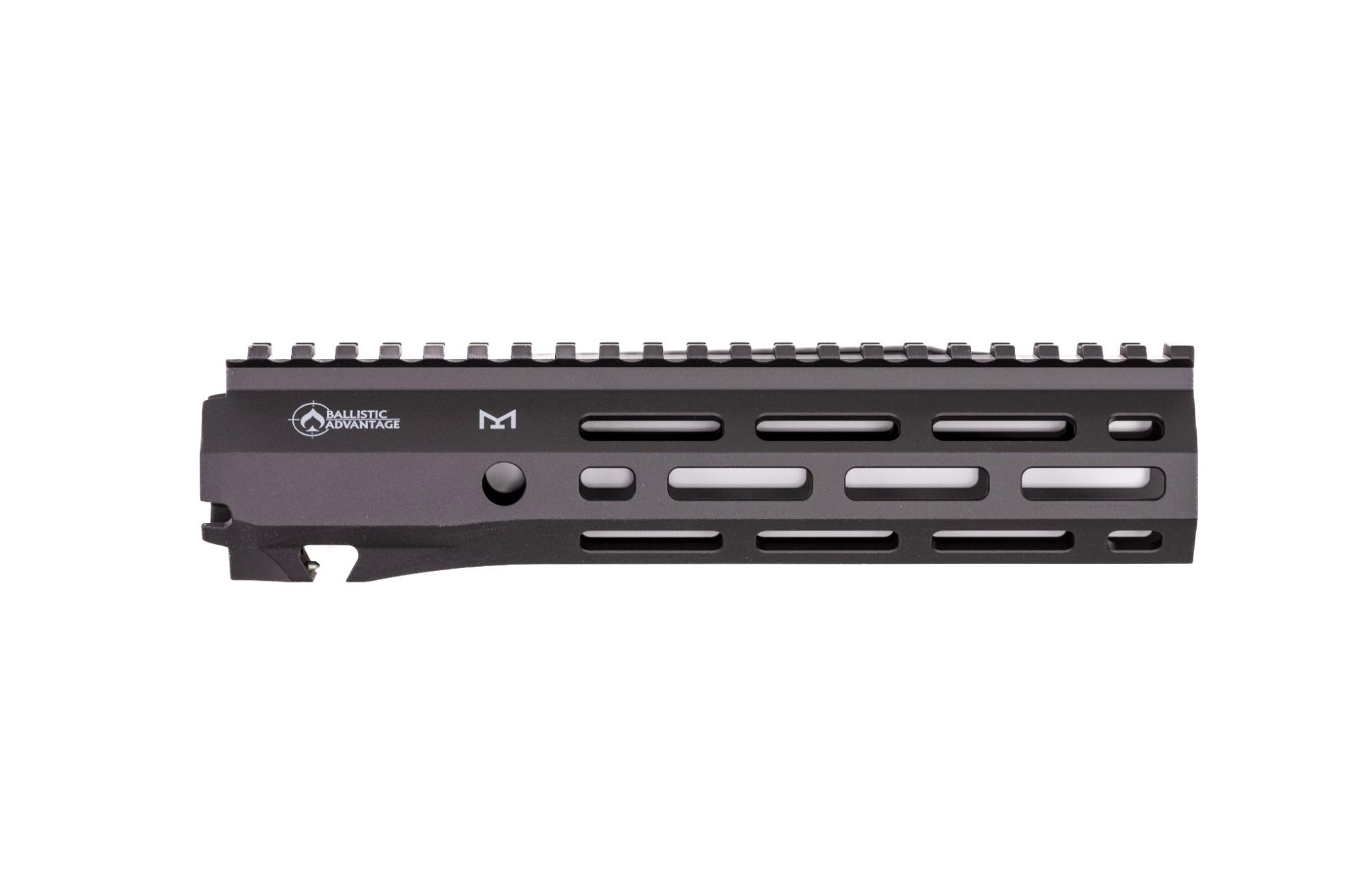

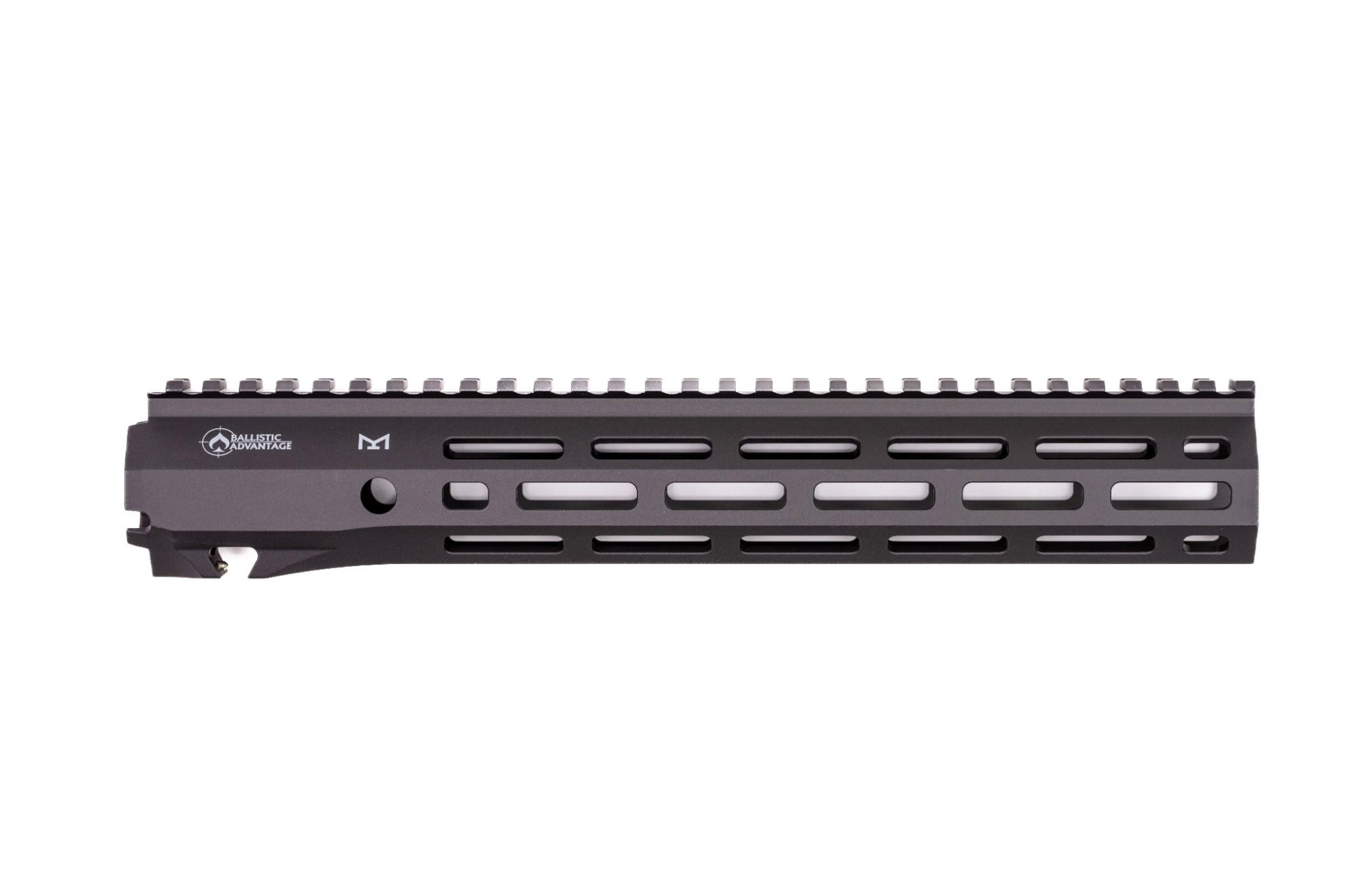

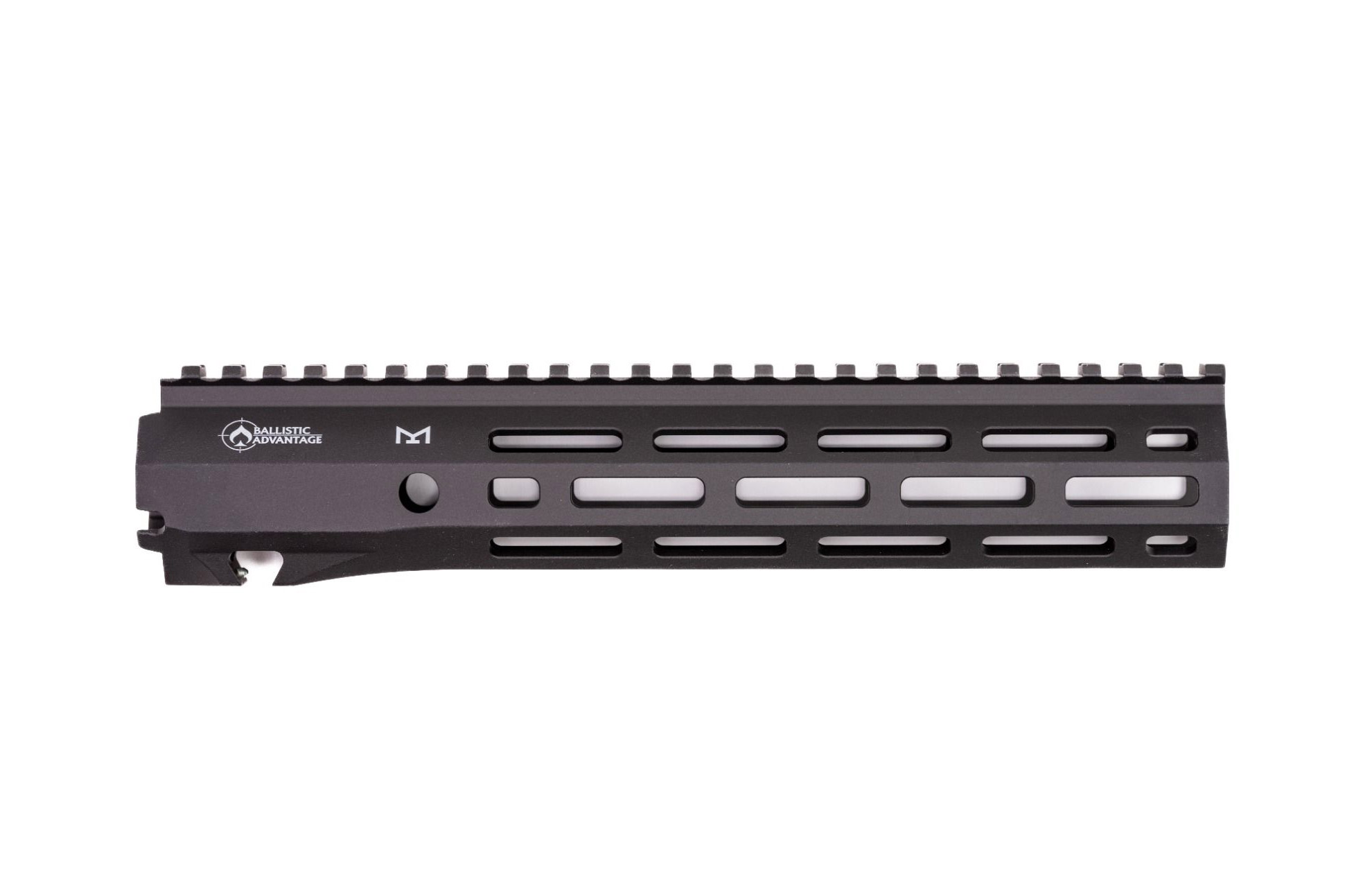

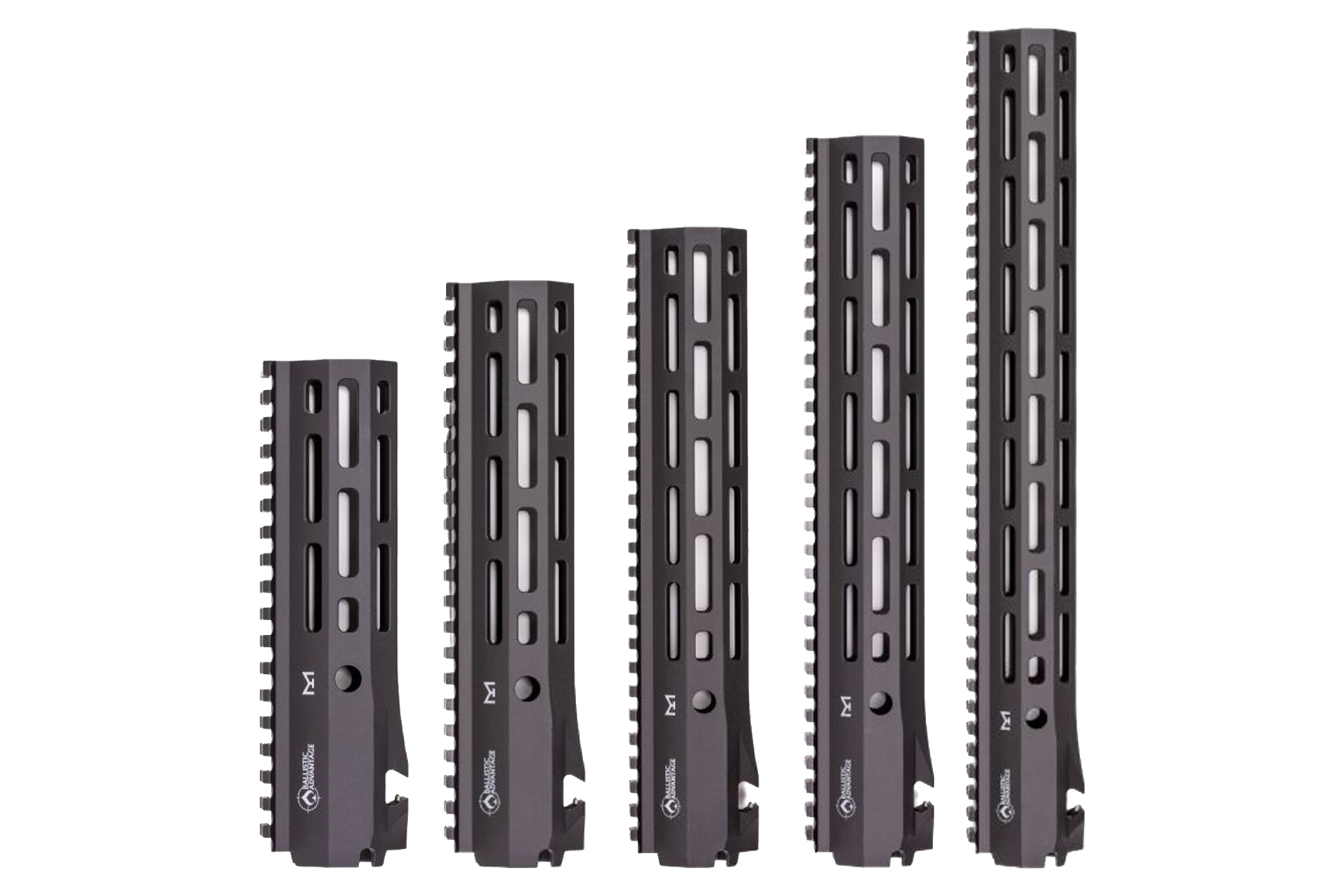

Available in M-LOK® profiles with 7″, 9″, 10″, 12″, and 15″ options.

Mounting Hardware

The Logic Handguards utilize the Aero Taper Lock Attachment System, which is both functional and aesthetically pleasing. It features 2 mirrored tapered locking nuts that provide evenly distributed clamping pressure across a custom-engineered barrel nut via a turnbuckle screw. A ratcheting detent further secures the design while providing positive registration during installation. By design, the even pressure of this system avoids the distortion of the handguard often seen with current applications during installation.

All hardware mounting parts are included with the purchase of a LOGIC Handguard.

Lightweight By Design

• M-LOK Handguard Weights: 7″ – 6.3oz / 9″ – 7.7oz / 10” – 8.9oz / 12″ – 10.1oz / 15″ – 12.6oz
• Mounting Hardware Weight: 1.9 oz (same across all Logic Handguard options)

Features

• Full top picatinny rail for optional attachments
• Functional M-LOK on all sides for complete attachment flexibility
• Quick disconnect sling socket at the 3, 6, and 9 o’clock positions
• Compatible with low-profile gas blocks
• 1.300″ Inside diameter
• 1.53″ Outside diameter
• Compatible with mil-spec AR15 upper receivers and barrels
• Torx Wrench not included
• Requires T15 Torx Wrench

Logic Handguards are designed to match seamlessly with our Ballistic Advantage Enhanced Upper Receivers. Additionally, they are compatible with any Mil-Spec AR-15 upper receiver.
