Faxon Firearms 16" Pencil .308 WIN Mid-Length Salt Bath Nitride 4150 Series Barrel - 10A810M16NPQ

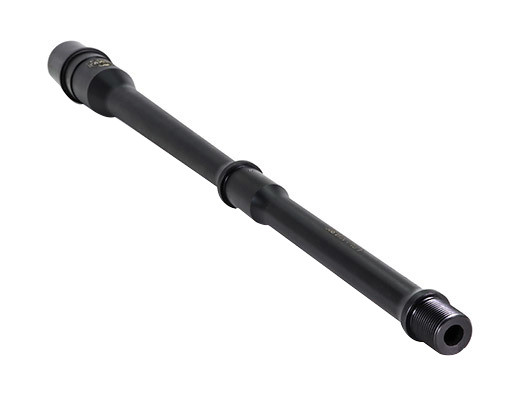

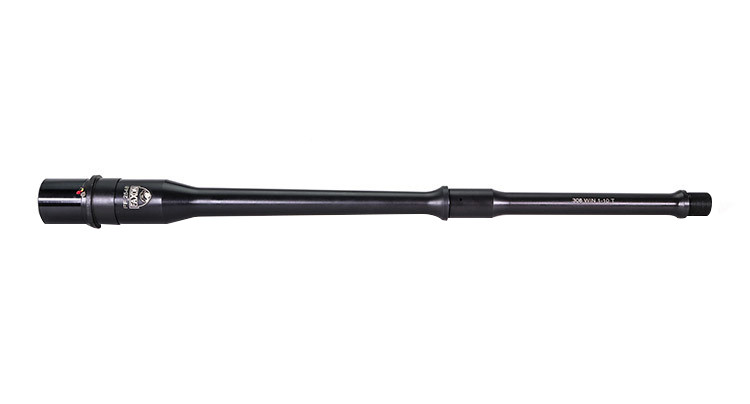

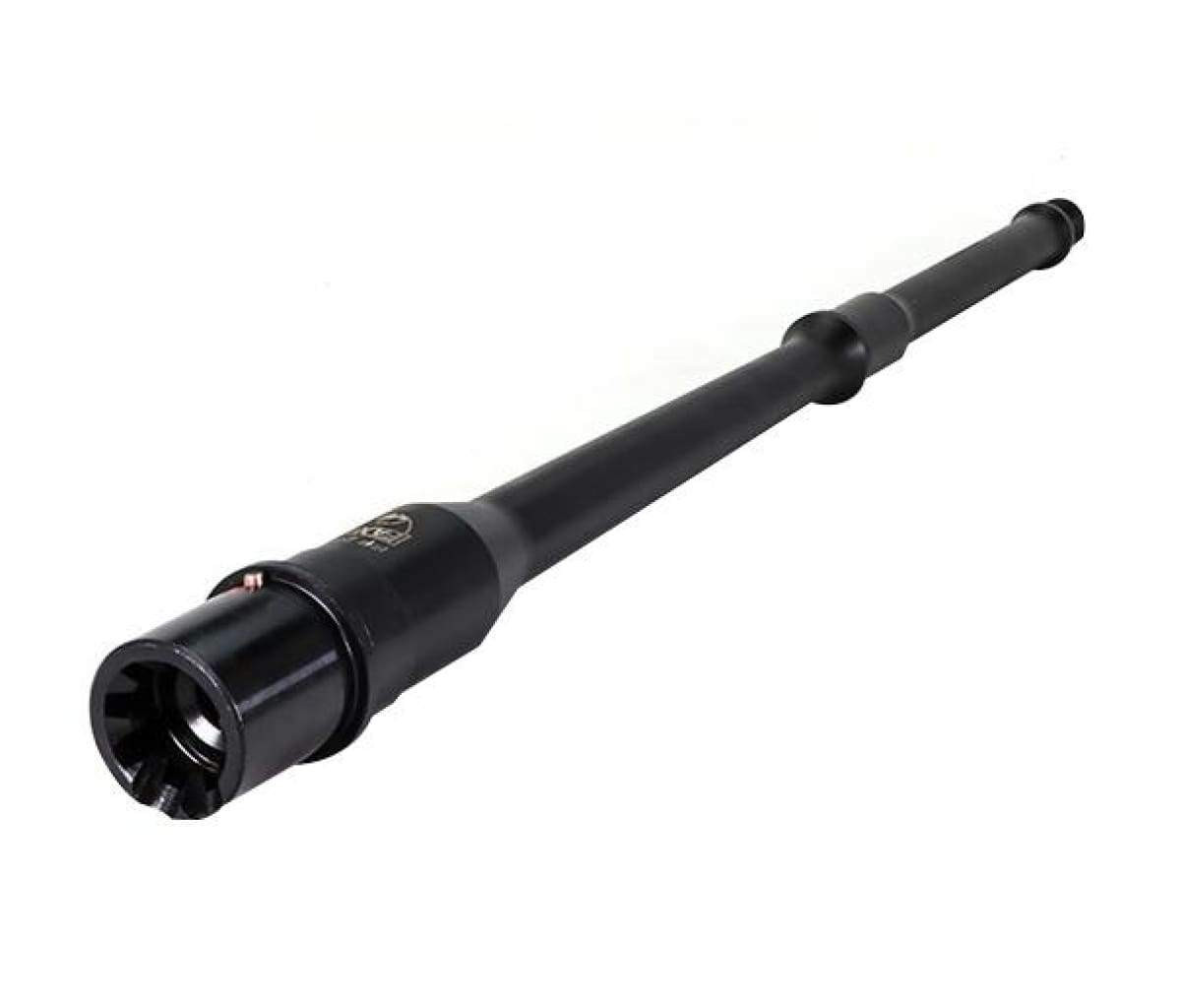

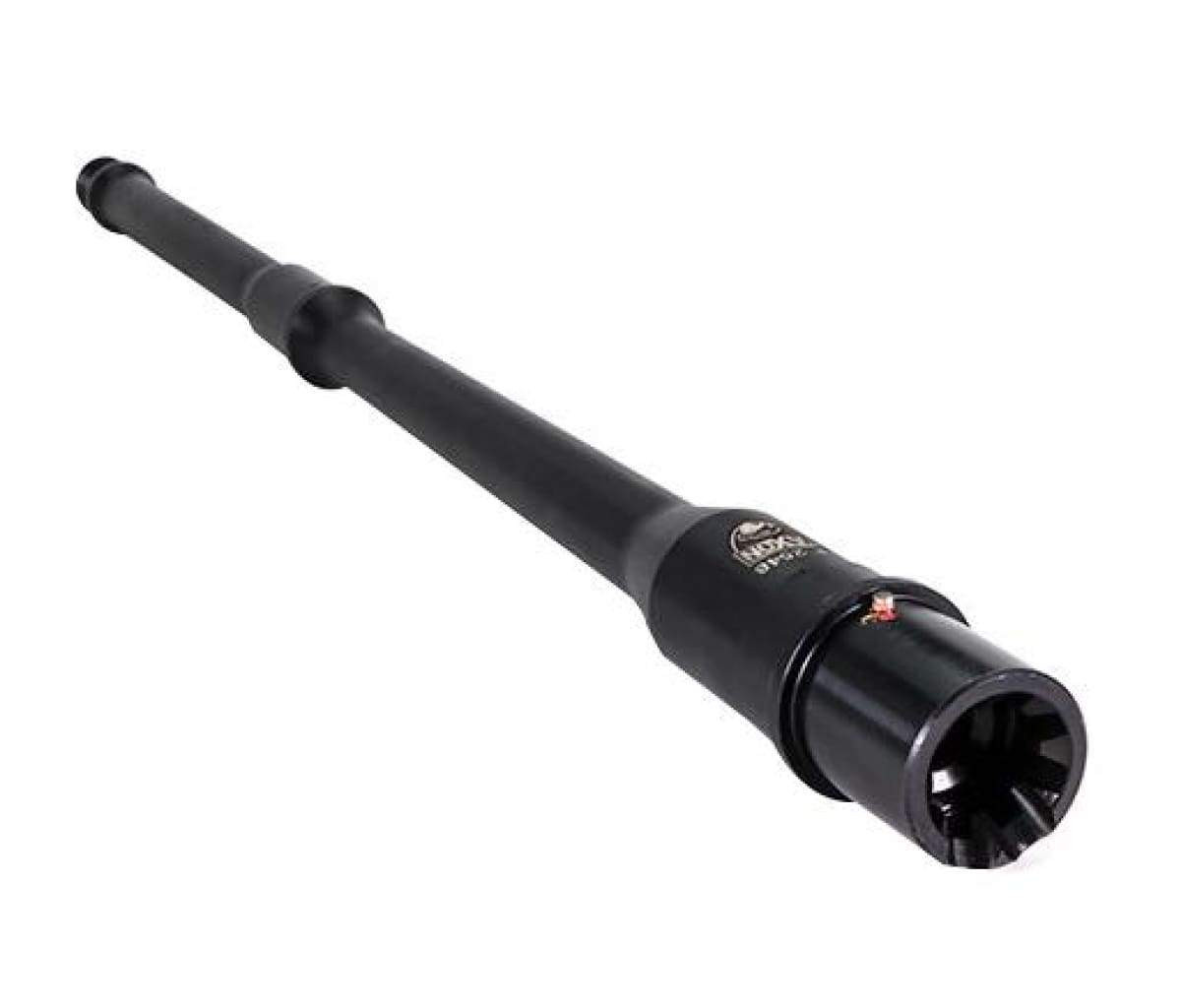

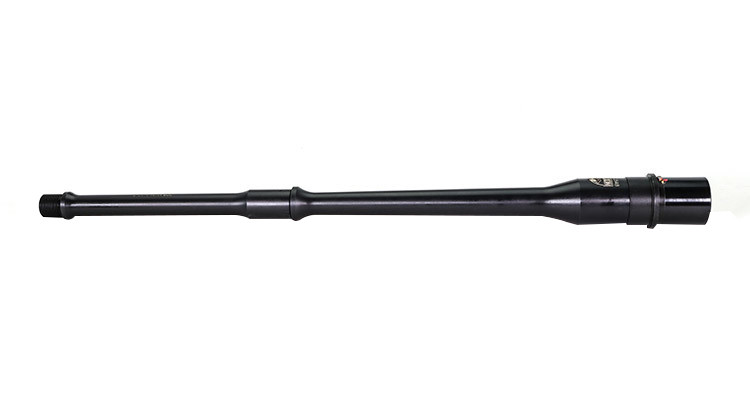

Faxon Firearms 16″ Pencil .308 WIN Mid-Length Salt Bath Nitride 4150 Series Barrel

Faxon’s pencil barrels are renowned for their lightweight performance. Fully stress relieved, we carefully designed the barrel’s taper to remove weight while maintaining performance. The result is the lightest barrel in the industry – and one we are fully confident to put our Faxon shield on.

Faxon’s .308 barrels feature 1/10 twist rifling for full stabilization across all common .308 loadings. Our barrels are chambered to the .308 Winchester SAAMI specification for maximum versatility. All our barrels are manufactured 100% in-house from cradle to grave. These barrels are fully stress relieved, air-gauge tested, and 11-degree target crowned to ensure superior accuracy.

Quality is imbued into our barrels from the start. We start with the best materials, either certified 4150 Mil-Spec steel or 416-R Stainless. From there, each barrel goes through a battery of tests at each operation until finished in Nitride and is finally inspected. All barrels are individually checked for headspace by precision custom hardened gauges.

Specifications

• Barrel Material: 4150 GBQ
• Barrel Caliber: .308 WIN
• Barrel Twist: 1:10
• Barrel Length: 16″
• Barrel Profile: PENCIL
• Barrel Gas System: Mid
• Inside Finish: Salt Bath Nitride
• Outside Finish: Salt Bath Nitride
• Muzzle Thread: 5/8-24 TPI
• Gas Block Diameter: .750″
• Gas Block Journal Length: 1.1″
• Barrel Extension: LR-308 (DPMS Compatible)
• Weight: 1.78 lbs
• Magnetic Particle Inspected!
• 11-degree Target Crown
