Glock parts can be difficult to identify if you are not fully sure what each component is called or where it fits inside the pistol. That is exactly why a Glock Parts Diagram is so useful. It gives shooters, armorers, and first-time buyers a clearer way to identify the parts inside the slide, frame, and magazine before placing an order.

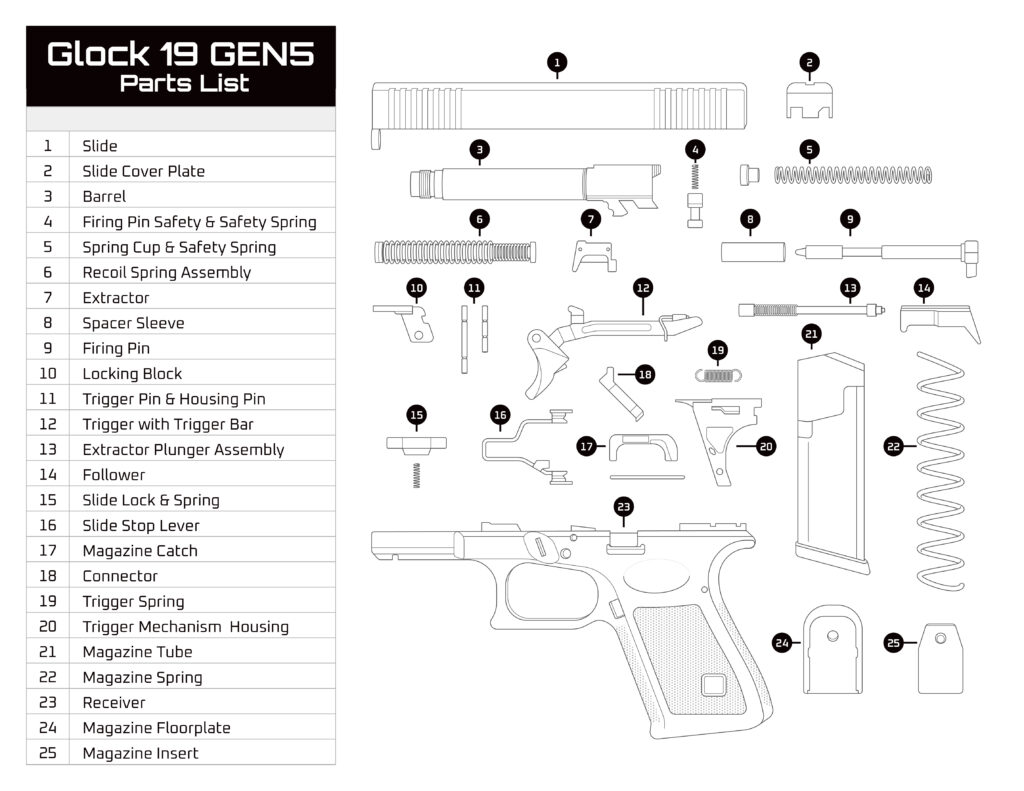

This guide breaks down the common Glock 19 Gen 5 parts shown in the diagram and explains what each one does in simple terms. Whether you are replacing a worn component, troubleshooting a malfunction, or upgrading your pistol, this page is designed to make it easier to find the Glock parts you need and shop confidently at Black Rifle Depot.
Lone Wolf Arms Dusk G19 9mm Complete Slide for Glock 19 Gen 3 – RMR Cut – Black
Lone Wolf Distributors
Glock Parts List
1. Slide
The slide is the complete upper portion of the pistol that houses several critical firing components. It moves rearward and forward during cycling, helping eject spent casings, chamber a new round, and reset the firing system.
2. Slide Cover Plate
The slide cover plate is the rear plate that retains internal slide components such as the firing pin assembly and spacer sleeve. It is a small but important part that helps keep the slide internals secure.
3. Barrel
The barrel guides the bullet after ignition and plays a major role in accuracy and reliability. In a Glock pistol, the barrel locks into the slide during firing and unlocks as the action cycles.
4. Firing Pin Safety & Safety Spring
This safety component helps prevent the pistol from firing unless the trigger is intentionally pulled. The spring keeps the firing pin safety engaged until the trigger bar lifts it out of the way during the firing sequence.
5. Spring Cup & Safety Spring
The spring cups are small retaining pieces used in the firing pin assembly. Together with the spring, they help keep the firing pin components properly assembled and functioning as intended.
6. Recoil Spring Assembly
The recoil spring assembly absorbs recoil energy and helps return the slide to battery after each shot. It is one of the key parts responsible for reliable cycling and smooth operation.
7. Extractor
The extractor grips the rim of the spent cartridge case and pulls it from the chamber as the slide moves rearward. If this part is worn or damaged, extraction problems can occur.
8. Spacer Sleeve
The spacer sleeve is part of the firing pin assembly inside the slide. It helps support and position the firing pin spring and related internal components.
9. Firing Pin
The firing pin strikes the cartridge primer when the trigger is pulled. This impact ignites the round, starting the firing cycle.
10. Locking Block
The locking block is installed in the frame and helps support the barrel and slide during operation. It plays an important role in maintaining proper lockup and overall durability.
11. Trigger Pin & Housing Pin
These pins secure major frame components, including trigger system parts and internal housings. They are essential for keeping the pistol assembled correctly.
12. Trigger with Trigger Bar
The trigger and trigger bar work together to release the firing pin during the firing cycle. This assembly is central to trigger pull, reset, and overall shooting feel.
13. Extractor Plunger Assembly
The extractor plunger assembly helps apply tension to the extractor, allowing it to hold the cartridge case properly. It supports reliable extraction and ejection.
14. Follower
The follower sits inside the magazine and pushes cartridges upward as rounds are fed. It works with the magazine spring to keep ammunition positioned correctly for feeding.
15. Slide Lock & Spring
The slide lock and its spring help secure the slide to the frame while still allowing for disassembly when needed. This part is commonly referenced during takedown and maintenance.
16. Slide Stop Lever
The slide stop lever allows the slide to lock open after the last round is fired. It can also be used manually to release the slide, depending on the shooter’s preference and technique.
17. Magazine Catch
The magazine catch retains the magazine inside the grip until the shooter presses the release. It is a key control part that affects reload speed and ease of use.
18. Connector
The connector is a critical trigger system component that influences trigger pull characteristics and reset. It helps control how the trigger bar interacts with the firing mechanism.
19. Trigger Spring
The trigger spring assists the movement and reset of the trigger system. Proper spring tension is important for consistent trigger function.
20. Trigger Mechanism Housing
The trigger mechanism housing contains and supports several internal fire control parts. It serves as an anchor point for components involved in the trigger system.
21. Magazine Tube
The magazine tube is the main body of the magazine that holds the ammunition stack. It houses the follower, spring, insert, and floorplate.
22. Magazine Spring
The magazine spring provides upward pressure inside the magazine so rounds feed properly. Weak or damaged magazine springs can lead to feeding issues.
23. Receiver
The receiver, or frame, is the main lower portion of the pistol. It holds the trigger components, locking block, magazine well, and other internal parts while providing the shooter’s grip surface.
24. Magazine Floorplate
The magazine floorplate is the bottom plate of the magazine. It helps retain the internal magazine components and can be removed for cleaning or maintenance.
25. Magazine Insert
The magazine insert works with the floorplate to help secure the bottom of the magazine assembly. It supports proper retention of the spring and internal magazine parts.
Frequently Asked Questions About Glock Parts
If you are still unsure which Glock components you need, the answers below address some of the most common questions shoppers have about identifying, replacing, or upgrading Glock parts. Use this section as a quick reference before ordering from Black Rifle Depot.
What is the purpose of a Glock Parts Diagram?
A Glock Parts Diagram helps identify the name and location of each component in the pistol. This makes it easier to order the correct replacement part, understand how the pistol functions, and troubleshoot common issues.
Why is it important to know the correct Glock part name before ordering?
Many Glock components look similar but serve very different roles. Knowing the exact part name helps prevent ordering mistakes and makes it much easier to find the correct replacement or upgrade at Black Rifle Depot.
Which Glock parts wear out most often?
Some of the most commonly replaced Glock parts include the recoil spring assembly, magazine spring, extractor, trigger spring, and magazine catch. Wear depends on round count, maintenance, and overall use.
Can I replace Glock parts individually?
Yes, many Glock parts can be replaced individually rather than replacing entire assemblies. Small internal components, magazine parts, and trigger system parts are often available separately for repairs and maintenance.
Are Glock magazine parts sold separately?
Yes, parts such as the follower, magazine spring, floorplate, magazine insert, and magazine tube can often be replaced individually. This is useful when refreshing older magazines instead of replacing the entire unit.
What is the difference between the slide and the receiver on a Glock?
The slide is the upper moving portion that contains the barrel and firing components, while the receiver or frame is the lower section that houses the trigger system, magazine well, and grip.
Why would someone replace the connector in a Glock?
The connector is often replaced to change trigger feel, improve reset characteristics, or restore factory performance. It is one of the most commonly discussed parts in Glock trigger upgrades.
How do I know if I need a new recoil spring assembly?
Signs of a worn recoil spring assembly can include cycling issues, unusual recoil behavior, or failure of the slide to return fully into battery. Replacing it at recommended intervals helps maintain reliability.
Can a worn extractor cause malfunctions?
Yes. A damaged or worn extractor can lead to failures to extract or erratic ejection patterns. If a Glock starts having extraction issues, the extractor and extractor plunger assembly are worth checking.
Where can I buy Glock replacement parts?
If you are trying to match the names in a Glock Parts Diagram to the parts you need, Black Rifle Depot is a great place to shop for Glock replacement parts, upgrades, and maintenance components.
Find the Right Glock Parts with Confidence
Using a Glock Parts Diagram is one of the easiest ways to identify the exact part you need before you buy. Instead of guessing at internal component names or trying to match parts by appearance alone, you can use the diagram and descriptions above to locate the right item with more confidence.
Whether you are replacing a recoil spring assembly, magazine components, trigger parts, or slide internals, Black Rifle Depot makes it easier to shop for the Glock parts that keep your pistol running reliably. When customers can quickly identify what they need, they spend less time searching and more time ordering the right parts.
