ODIN Works Ambidextrous Modular Safety

ODIN Works Ambidextrous Modular Safety

Everyone who runs an AR-15 platform knows that the correct positioning of your controls makes a big difference in how effectively you can control the entire firearm. ODIN Works is well aware of this fact and has taken rapid control of your platform to a new level. The ODIN Works Ambidextrous Modular Safety has set a new standard for end-user AR15 safety operation. It allows the end-user to switch their safety selector between 8 adjustable variations to serve their needs better while on the range or competing. The innovative ODIN Works 90-degree or 45-degree selector barrel allows these variable changes in its configuration, making this safety truly modular.

Features

• 8 possible safety paddle configurations
• 45-degree or 90-degree safety switch position capability

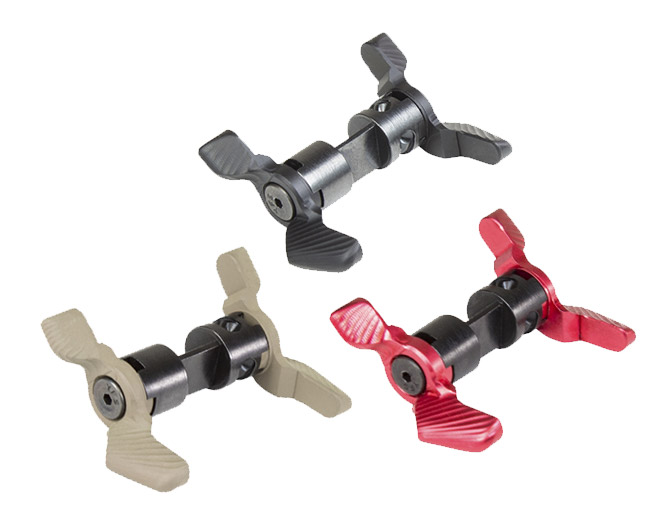

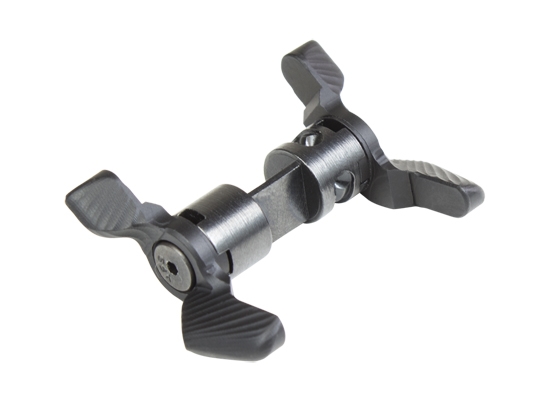

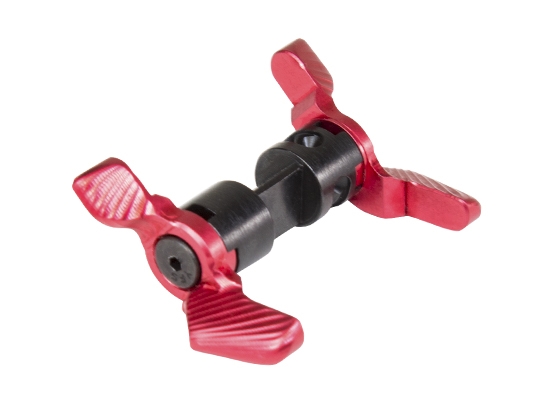

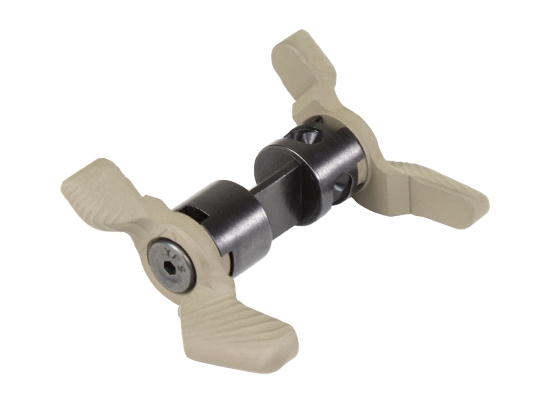

• 3 color choices- Black, Red, and FDE
• Mil-Spec AR15 lower compatible
• All edges and sides are contoured for maximum comfort during use

Materials

• Paddles: Anodized or Cerakoted Aluminum
• Barrel: Steel

Includes:

• 1 x Hex Key
• 2 x Hex Screws
• 1 x Center Barrel w/ 90/45 Position options
• 2 x Safety Paddles

Install:

1st- BE SURE YOUR FIREARM IS NOT LOADED!!

• Remove the AR Pistol Grip to access the safety detent and spring. Be careful and go slow.
• Retract the hammer and remove the factory or existing safety.
• Install the ODIN Works Modular Safety Barrel in the desired configuration. *NOTE from the ODIN Works Website: The ODIN Works safety features a 90-degree and a 45-degree option, which can be changed by reversing the orientation of the barrel in the lower receiver.
• Flip the lower upside down, and reinstall the safety detent first (the pointed part of the detent goes towards the safety), then install the detent spring next, and then the AR Pistol Grip last. Be sure the detent spring is correctly aligned in the pistol grip hole when tightening the grip screw.
• Using the wrench that ODIN Works includes in the kit, install the safety paddles in the configuration you prefer and tighten down the screws.
• BE SURE to check for safe function before firing any live rounds. The Safety should block the trigger mechanism from releasing the hammer.

***If you experience any problems during installation, please stop and call ODIN Works Customer Service immediately.***
