Armaspec Stealth™ Recoil Spring - SRS™- AR15

Armaspec Stealth™ Recoil Spring - SRS™- AR15

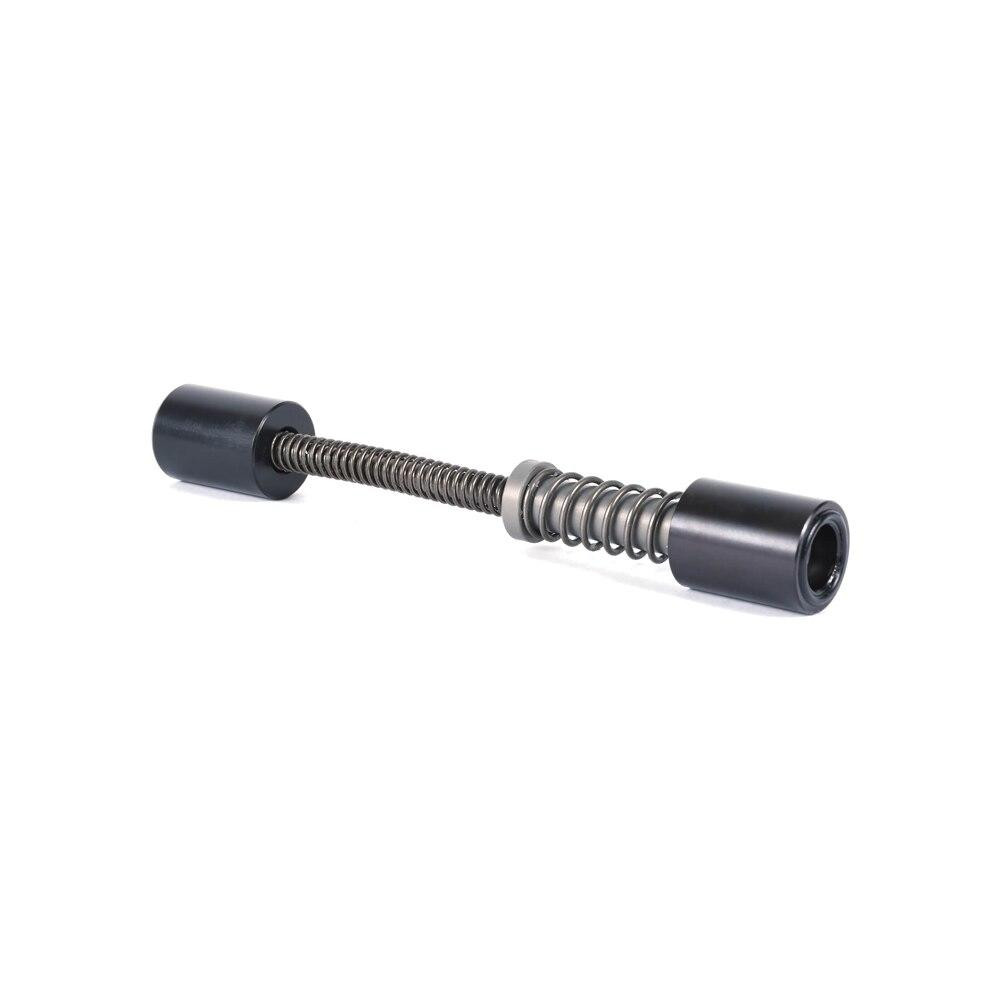

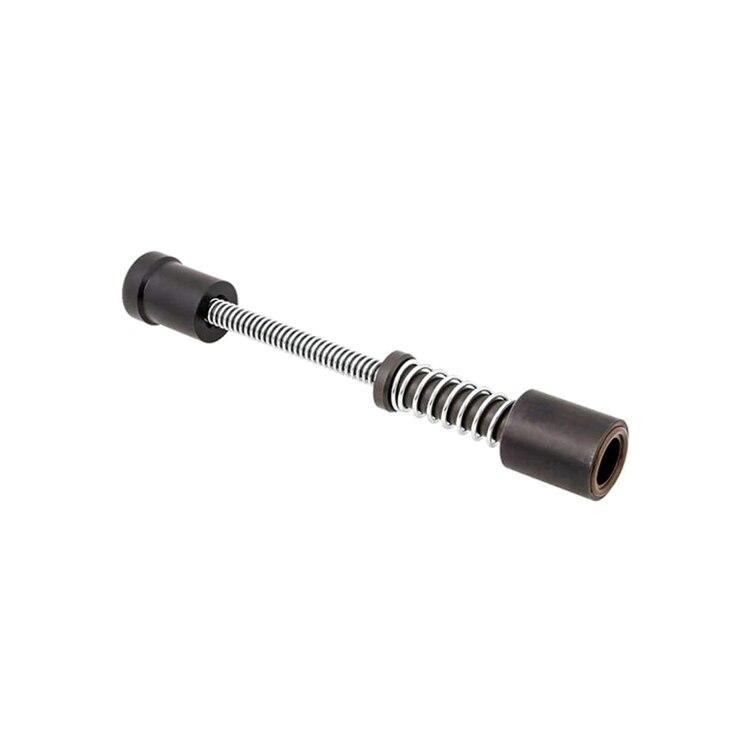

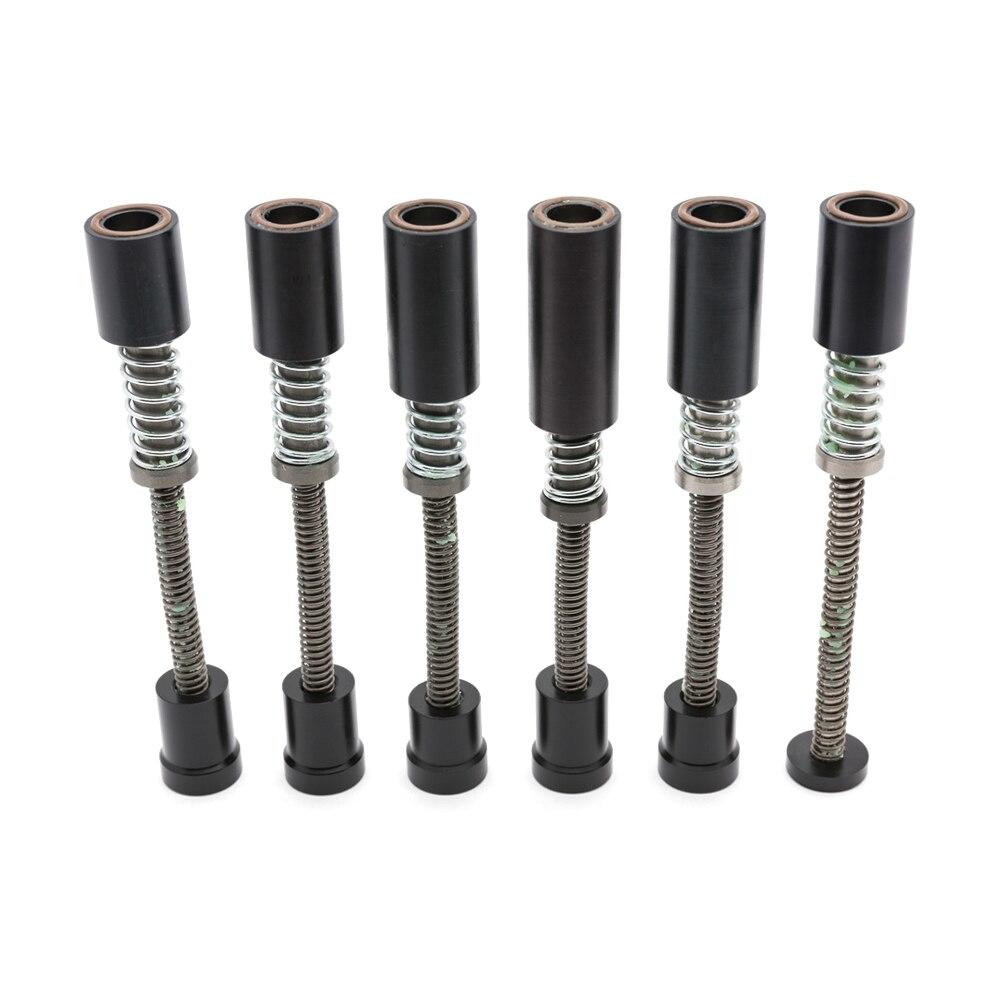

The Armaspec Stealth Recoil Spring™ SRS™ is an upgraded multi-staged, self-contained, drop-in replacement for your standard buffer and spring. The SRS™ is specially designed to keep the buffer spring off of the inner wall of the buffer tube to provide a smooth, quiet operation. It was enhanced with a second stage that helps reduce the felt recoil significantly.

Features:

• Drop-in replacement for standard buffer and spring
• Reduce felt recoil
• Keep the buffer spring from rubbing against the inner wall of the buffer tube
• Buffer mass is designed to stay under constant tension against the bolt carrier

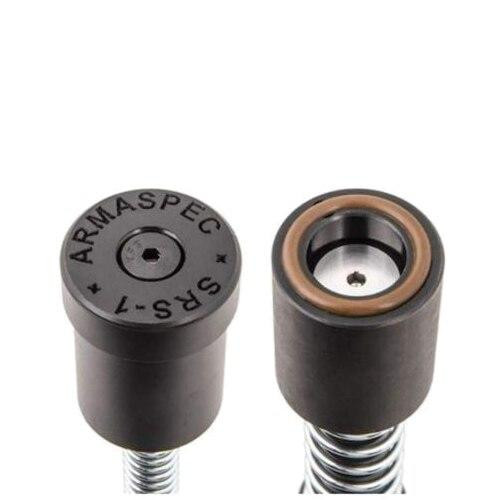

• Rubber O-ring on the head of the buffer mass prevents metal on metal contact
• Made in the U.S.A.

Specs:

       Overall length:

• Length: 7.18"

       Equivalent Weight:

• C: 3.3 oz.
• H: 3.8 oz.
• H2: 4.7 oz.
• H3: 5.6 oz.
• BB: 5.7 oz.
• 9MM: 6.4 oz.

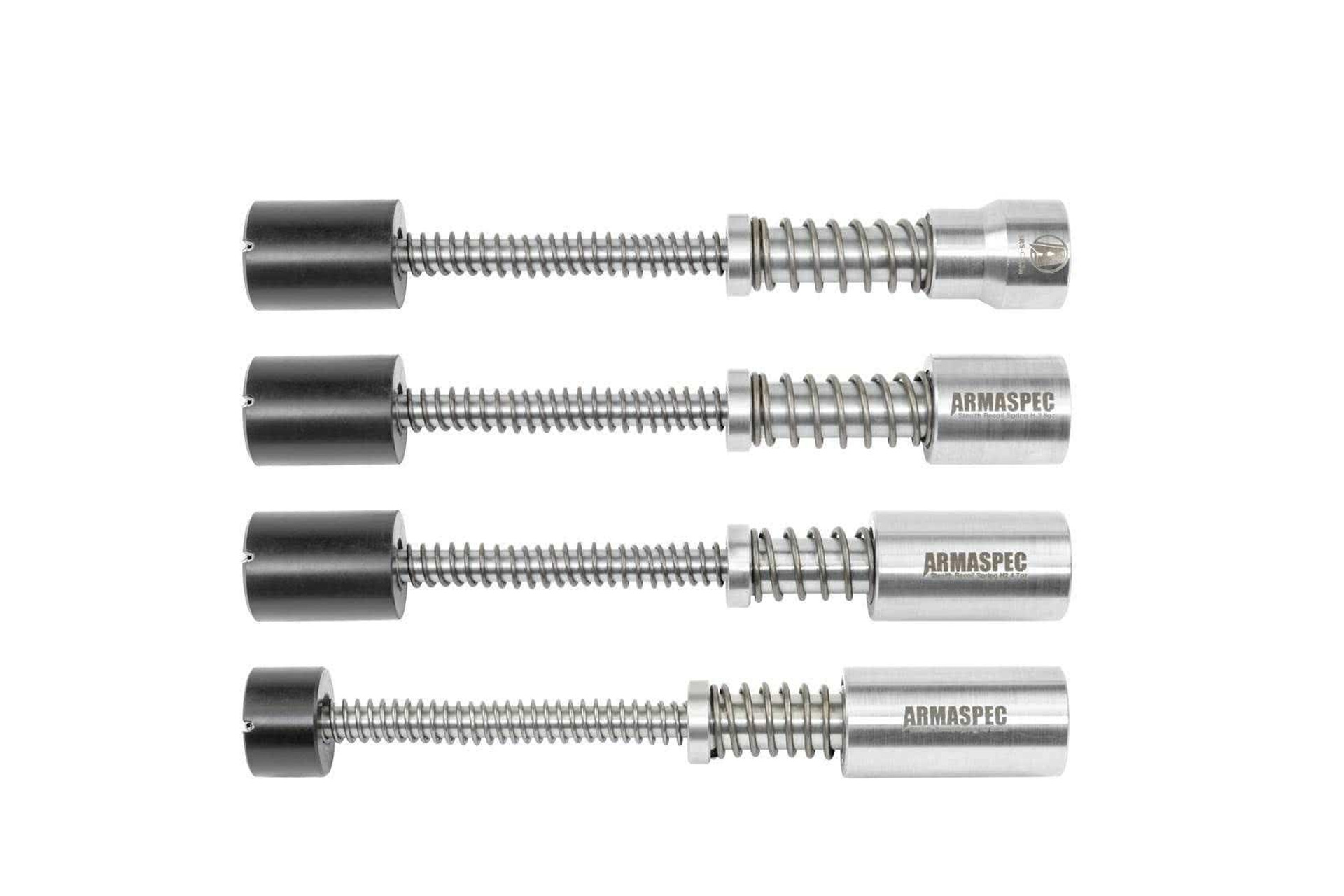

       Actual Wight: - Complete System (new version with stainless steel weight):

• C: 6.2 oz.
• H: 6.6 oz.
• H2: 7.4 oz.
• H3: 8.0 oz.
• BB: 7.5 oz.
• 9MM: 9.5 oz.

Compatibility:

• AR-15 with carbine-length buffer tube

Special Notes:

The SRS™ comes with Red LOCTITE on the front metal stop and Blue LOCTITE for the bottom bumper, when reassembling we recommend reapplying LOCTITE. The SRS™ can be installed with or without a buffer retainer.

The polymer bumper goes towards the rear of the firearm and the weight mass with the o-ring goes towards the bolt carrier.

Most bolt carriers have a rear opening of over .60″, there are a couple of bolt carriers in the market place that have a rear opening of under .60″ and will not function with the SRS.

9mm Bolt Carriers ONLY: For proper function of the SRS-9 in your 9mm rifle or pistol, the extra weight on the back of the bolt carrier needs to be removed. It is held in with a spring pin.
