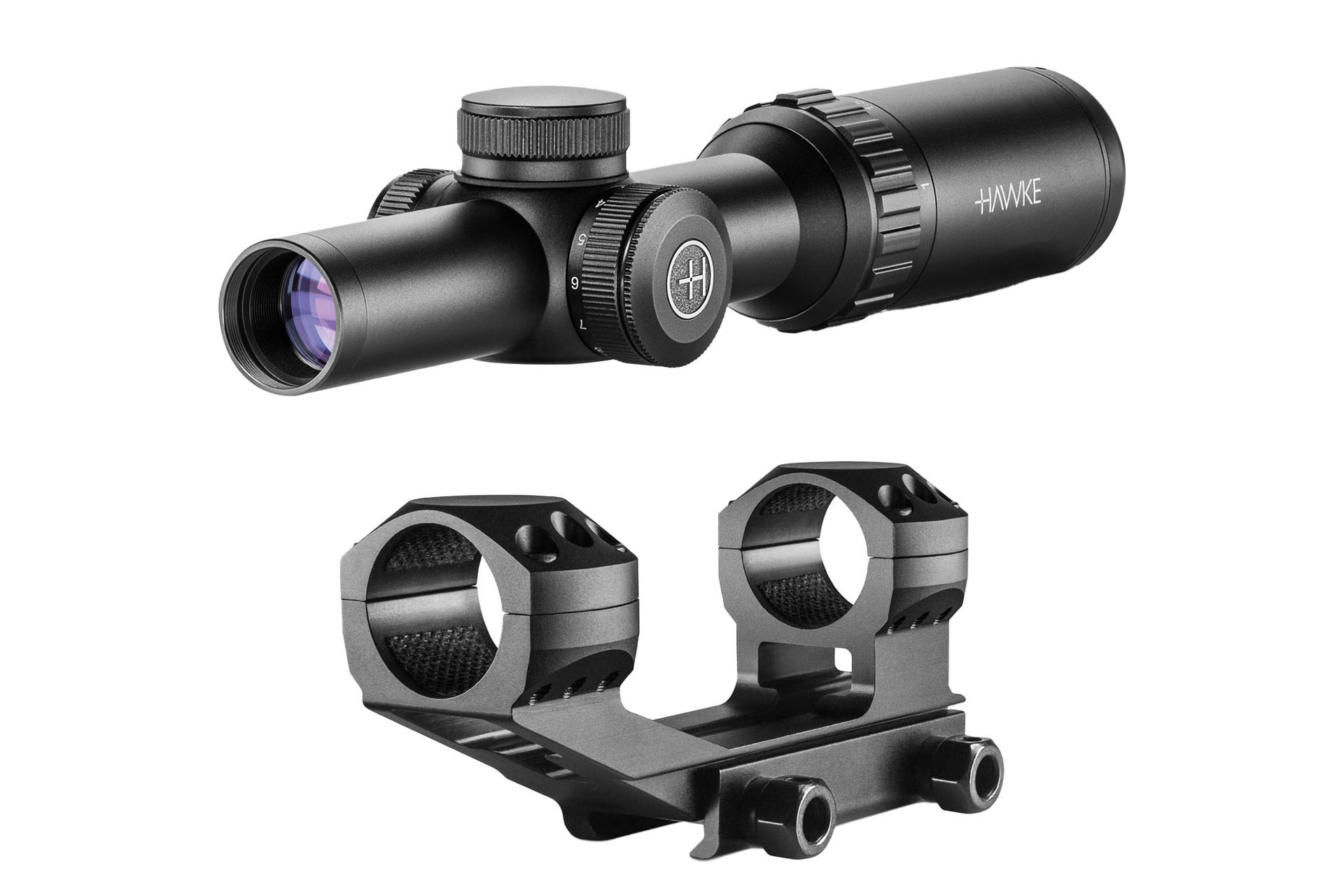

Hawke Optics 1-4×20 L4A FD-FREE 1″ Cantilever
This Hawke bundle pairs the Vantage IR 1-4×20 riflescope with a 1-inch Tactical AR Cantilever Mount, giving AR-platform shooters a ready-to-install optic setup built for speed, simplicity, and dependable field use. The scope offers a true 1-4x magnification range, a daylight-visible fiber-optic-illuminated L4A Fiber Dot reticle, a second-focal-plane layout, and a compact 8.7-inch overall length that works well on lightweight carbines and general-purpose rifles.
Features
- Includes Hawke Vantage IR 1-4×20 riflescope and 1-inch AR cantilever mount bundle.
- Daylight-visible fiber optic illuminated L4A Fiber Dot reticle with no battery required.
- 1-4x magnification range for close-quarters speed and mid-range precision.
- Second focal plane optic with capped low-profile turrets and fast-focus eyepiece.
- 11-layer fully multi-coated lenses for improved light transmission and image quality.
- Nitrogen-purged, waterproof, fogproof, and shockproof construction.

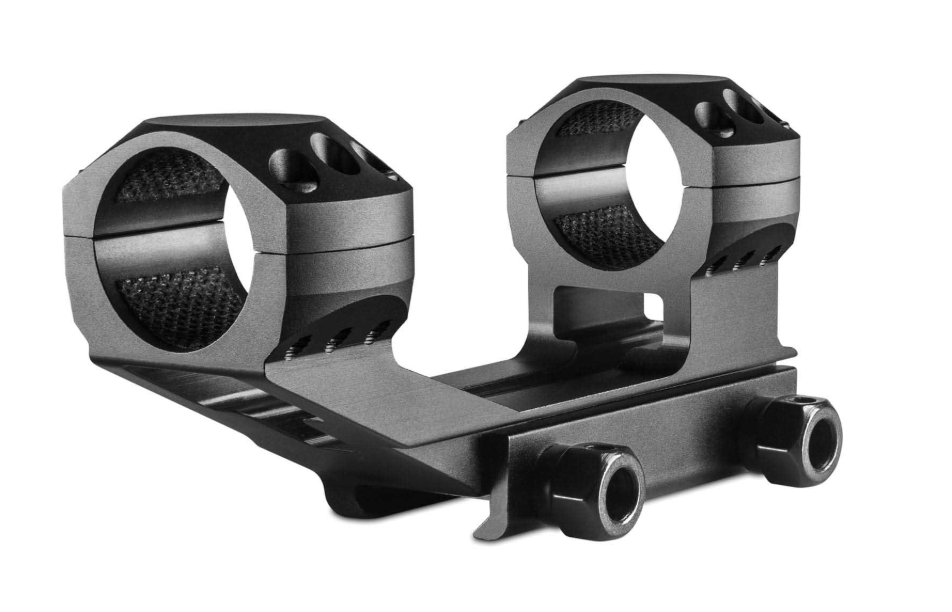

- Mount features 2-inch cantilever offset, Weaver crossbar, and triple Torx ring screws.
- Internal ring cushion helps prevent scope marking and damage.
Specifications
- Scope Model: 14206.
- Mount Model: 24130.
- Bundle MPN: 14206 + 24130.
- Magnification: 1-4x.
- Objective Lens Diameter: 20mm.
- Tube Diameter: 1 inch.
- Focal Plane: Second focal plane.
- Adjustment Click Value: 1/2 MOA.
- Eye Relief: 4 inches.
- Parallax: Fixed at 100 yards.
- Scope Length: 8.7 inches.
- Scope Weight: 11.7 oz.
- Mount Rail Type: Weaver.
- Mount Offset: 2 inches.
- Mount Height: 2.3 inches.
- Mount Weight: 6.7 oz.
