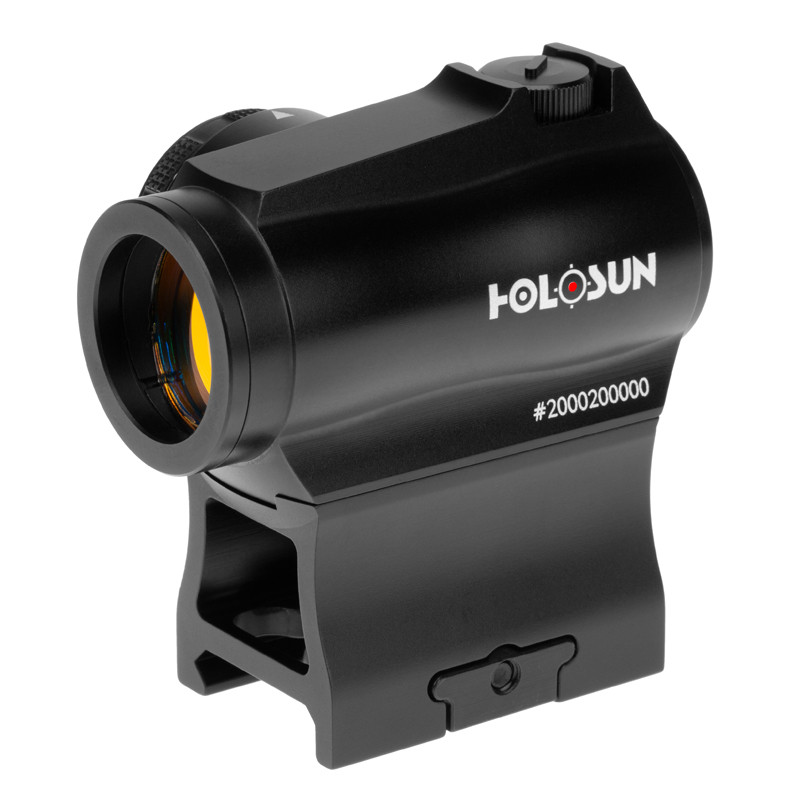

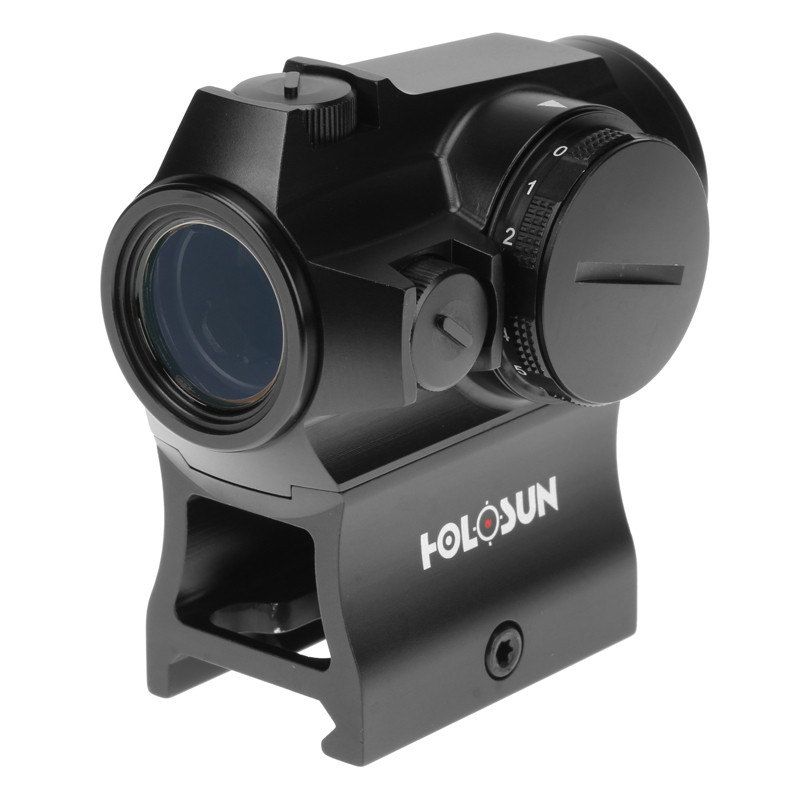

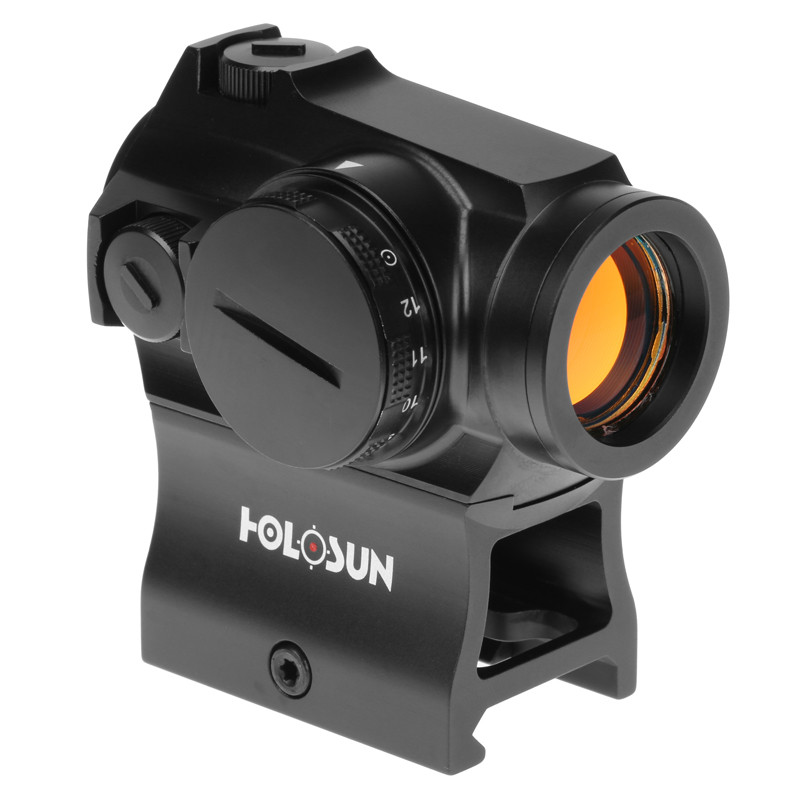

Holosun HE503R-GD Elite Gold Dot Sight
The HE503R-GD (Gold Dot) is a 20mm micro sight designed for rifle and carbine applications. HE503R-GD features a Rotary switch to select reticle intensity, Holosun’s Gold Super LED with 50k hour battery life, and MRS (Multi-Reticle System) with 10 daylight and 2 night vision compatible reticle intensity settings.
The HE503R-GD housing is made from 6061 aluminum and includes both a lower 1/3 co-witness mount (1.63”) and a low mount (.75”) for low-comb height rifle applications. Additional features include rubber lens covers and a battery compartment integrated into the Rotary switch for the 2032 battery. HE503R-GD is a versatile sight for users of all levels.
Specifications
Optical
- Reticle: 2 MOA Dot
- Light Wavelength: 590nm
- Reticle Color: Gold
- Parallax Free: Yes
- Unlimited Eye Relief: Yes
- Magnification: 1x
- Multi-Coatings: Yes
Electronic
- Power Source: Battery
- Battery Type: CR2032
- Battery Life (Hours): 50,000
- Brightness Setting: 10 DL&2 NV
Physical
- Window Size: 20mm Diameter
- Dimension (in): 2.75×1.43×1.62
- Weight (oz): 3.53
Mechanical
- Housing Material: 6061 T6 Aluminum
- Surface Finish: MAO
- Adjustment per Click: 0.5 MOA
- W&E Travel Range: ±50 MOA
Environment
- Storage Temperature: -40℃~70℃
- Working Temperature: -30℃~60℃
- Submersion: IP67
- Vibration: 1000G
| Weight | 3.53 oz |
|---|---|
| Click Value | 1/2 MOA |
| Night Vision Compatible | Compatible |
| Reticle | 65 MOA Circle 2 MOA Dot |
| Size | Microdots |
| Reticle Color | Amber |
| Battery Type | CR2032 |
| MPN | HE503R-GD |
| UPC | 605930625394 |
Compliance
NFA (National Firearms Act) compliance is crucial for legal ownership and transfer of regulated firearms and accessories like short-barreled rifles, suppressors, and certain types of ammunition, ensuring adherence to federal regulations to avoid legal penalties and ensure responsible firearm ownership.
