Magpul MBUS PRO Sight Set - MAG275+MAG276

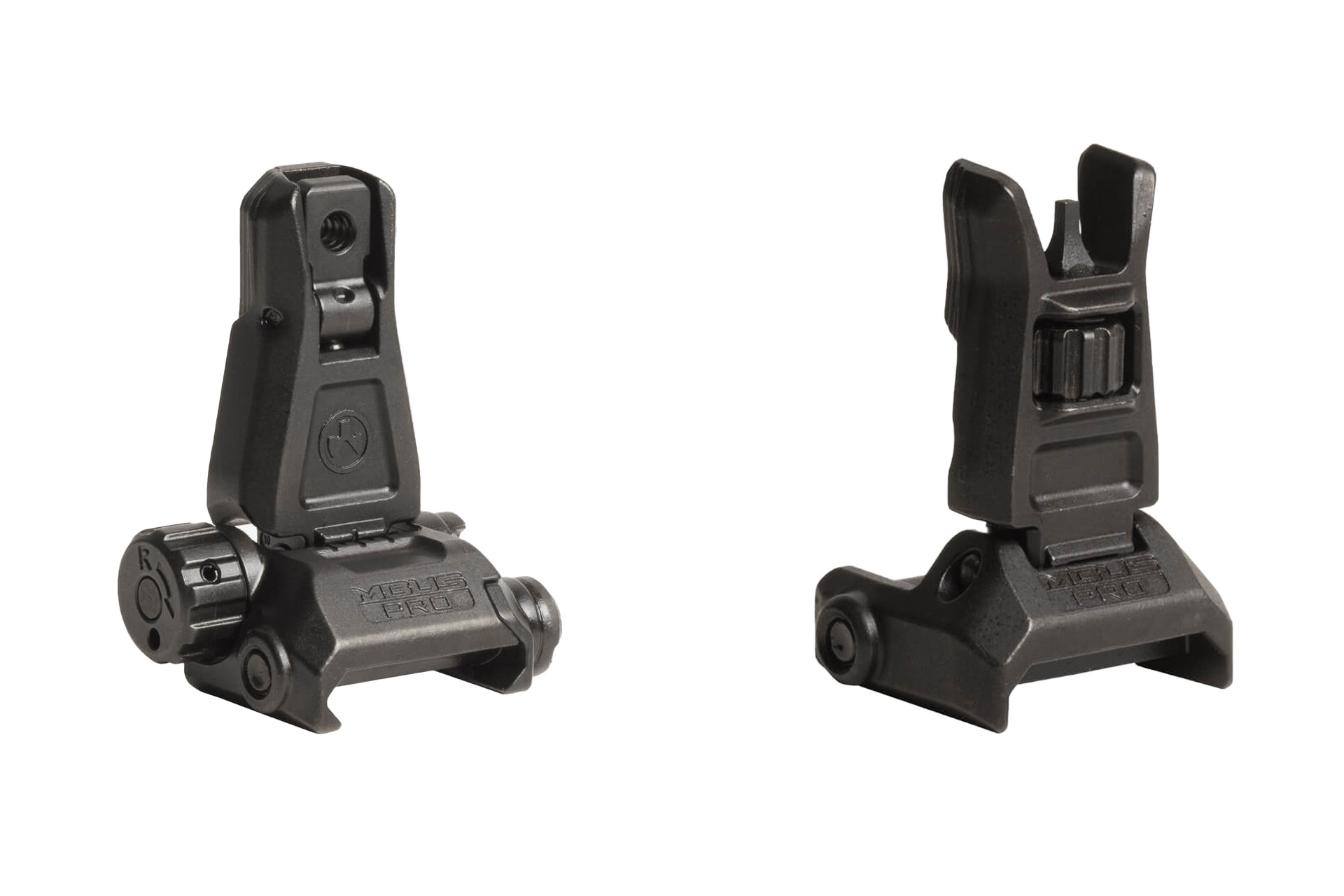

Magpul MBUS PRO Sight Set

The Magpul MBUS PRO Front and Rear Sight Set delivers a durable, low-profile backup iron sight solution for rifles using standard 1913 Picatinny or STANAG 4694 rails. Built from steel and finished for strong corrosion and wear resistance, this set is designed to stay out of the way when folded and deploy quickly when needed. The front sight offers tool-free elevation adjustment with selectable post widths for either precision or visibility, while the rear sight uses same-plane apertures and a low-profile windage knob for fast, practical adjustments. Together, they provide a compact, hard-use sighting setup for AR platforms and other compatible rifles.

Features

• Includes Magpul MBUS PRO front and rear sights
• All-steel construction
• Low-profile folding design
• Positive detents in both deployed and stowed positions
• Front sight uses selectable Match and Standard width post
• Rear sight uses selectable large and small same-plane apertures
• Front elevation adjusts without tools
• Rear windage adjusts with a low-profile knob
• Fits MIL-STD-1913 Picatinny and STANAG 4694 rails
• Compatible with receiver-height gas blocks

Specifications

• Material: Steel
• Finish: Melonite QPQ
• Rail Compatibility: MIL-STD-1913 Picatinny / STANAG 4694
• Deployed Height: Standard AR sight height
• Front Weight with Hardware: 1.5 oz.
• Front Stowed Height Above Rail: Approx. 0.43 in. max
• Front Stowed Length: 1.6 in.
• Front Sight Post Widths: .040 in. Match / .060 in. Standard
• Front Elevation Adjustment: Approx. 1 MOA per click with 14.5 in. sight radius / approx. 0.7 MOA per click with 20 in. sight radius
• Rear Aperture Height Over Rail: 1.41 in.
• Rear Small Aperture Diameter: 0.07 in.
• Rear Large Aperture Diameter: 0.19 in.
• Rear Windage Adjustment: Approx. 0.5 MOA per click with 14.5 in. sight radius / approx. 0.4 MOA per click with 20 in. sight radius
