ODIN Works .750 Low Profile Adjustable Gas Block
- SKU:
- 1566
- UPC:
- 856205005353
- MPN:
- GB-ADJ
- Shipping:
- Calculated at Checkout
Description

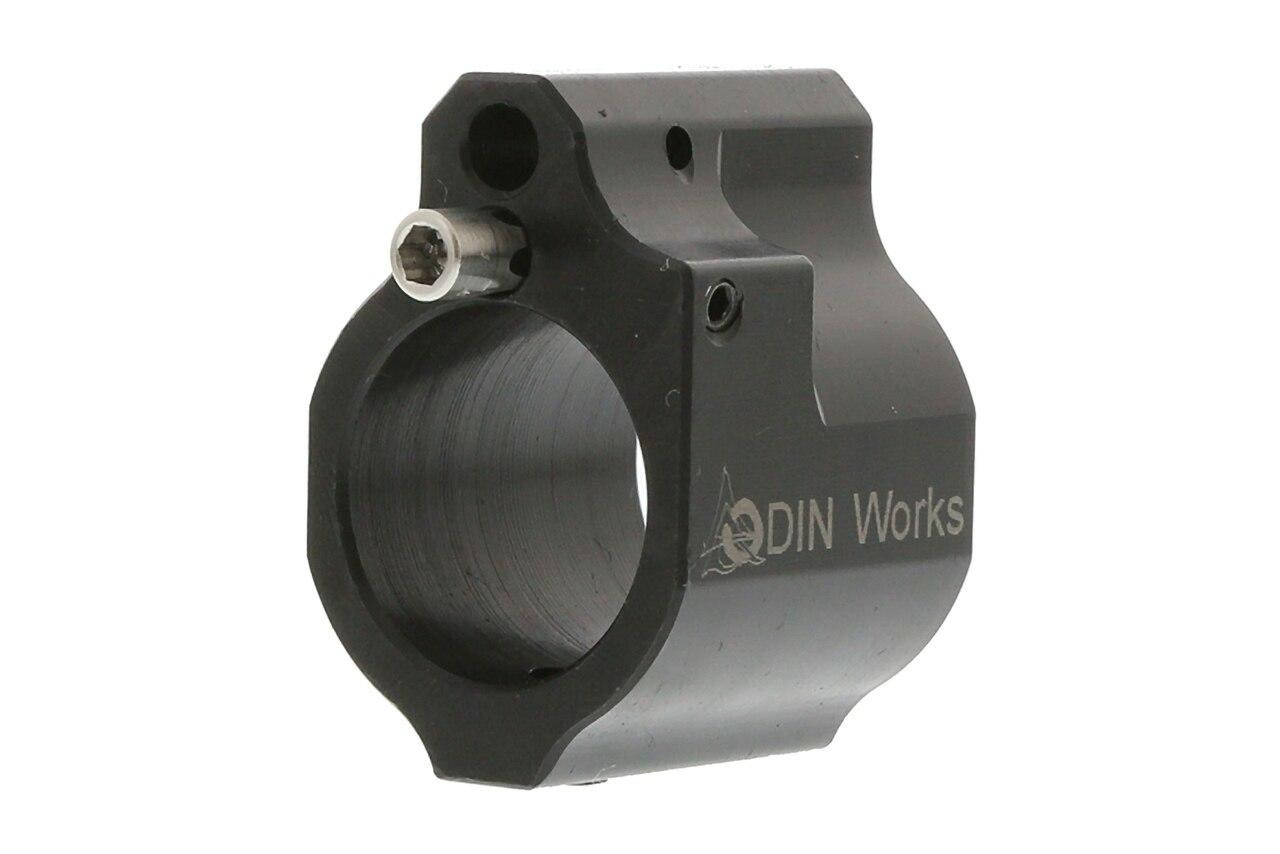

ODIN Works .750 Low Profile Adjustable Gas Block
The ODIN Works gas block is truly adjustable and packed with features. Machined from steel and black nitrided for durability. Front facing Inconel adjustment screw and spring to handle high temperatures. 20 clicks of ball detent adjustment, no set screws needed, simply adjust the Inconel screw where you want it and you’re done. The ODIN Works adjustable gas block will fit any barrel with .750" diameter and works with any caliber.
Includes:
- .750″ inch Gas Block
- Inconel Alloy adjustment screw and spring
- Detent ball, cross pin, set screws
- hex wrenches included
Technical Specs:
- 20 separate adjustments possible
- Fits .750″ diameter gas journals
- 2.10 ounces overall weight
- Carbon steel construction
To Disassemble for Periodic Cleaning:
1. Loosen set screw #1
2. Loosen and remove screw #2.
3.Carefully remove spring and detent ball.
4. Remove gas adjustment screw #3.
5. Soak in cleaning solvent.
Videos
View AllCloseAdditional Information
MPN: |
GB-ADJ |
Finish: |
Nitride / Melonite |
Gas Block Journal: |
0.75 |
Adjustable: |
Yes |
