Strike Industries REX Riser

Strike Industries REX Riser

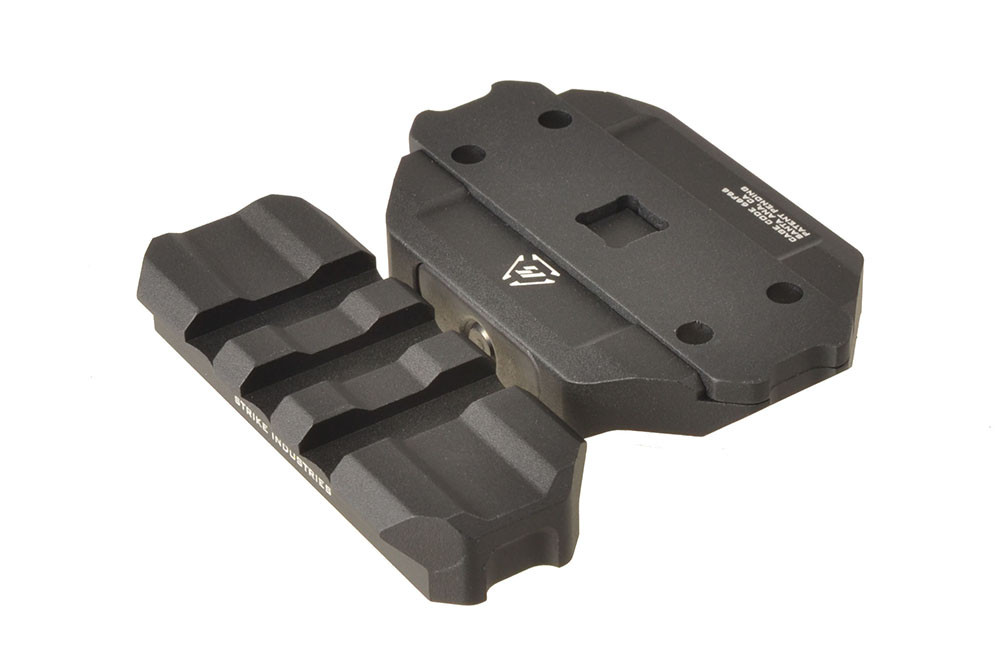

The R.EX Riser is a low-profile, lightweight riser for AR platforms. Set at the ideal height for co-witnessing with the SI Reflex Exoskeleton mount and either A2 height or Sidewinder sights (without spacer), the REX Riser is versatile and provides a solid mounting platform. While optimized for use with the R.EX Mount, the universal Picatinny pattern can be used with many other optics that can be mounted on Picatinny sections.

Features

• Low-profile rail riser
• Lightweight, 2 oz total installed co-witness height.
• Co-witness with A2 or Sidewinder Sight using R.EX Mount
• 3 Picatinny slot sections

Specifications

• Weight: 2 oz
• Heights: W/Spacer 0.630 inches. W/out Spacer 0.530 inches, Spacer height: 0.100 inches
• R.EX Exoskeleton will add 0.200 inches of height to either combination of the Rex Riser
• Base: 6061-T6 Al, requires 5 rail sections of space to mount properly.
• Total Length of Picatinny Riser: 2.09 inches
• Spacer: 6061-T6 Al
• Clamp: Steel
• Screw: Steel
• Finish:
• TIII Hard anodize (BK)
• TII Color Anodize

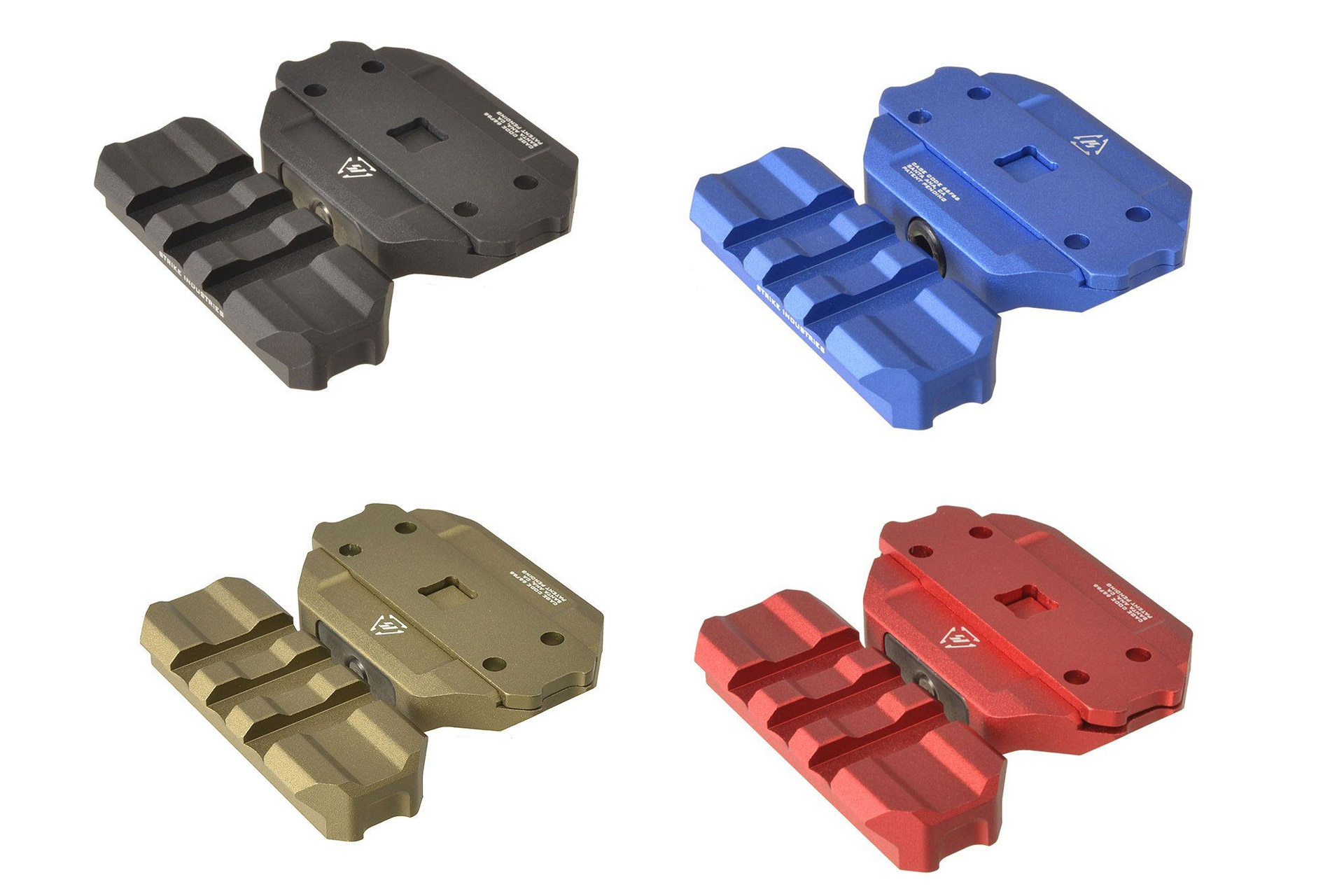

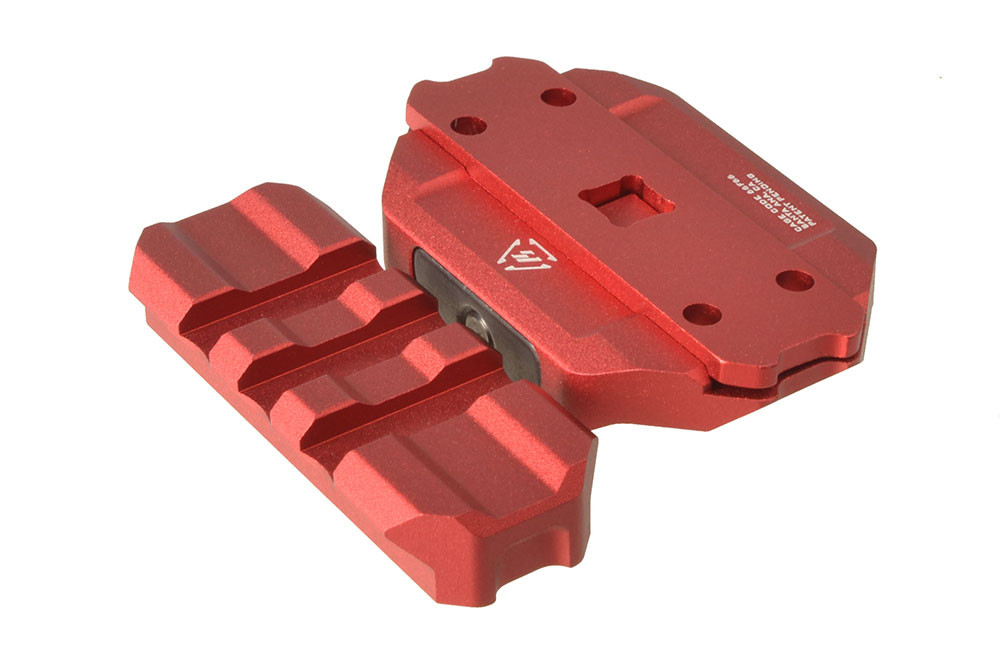

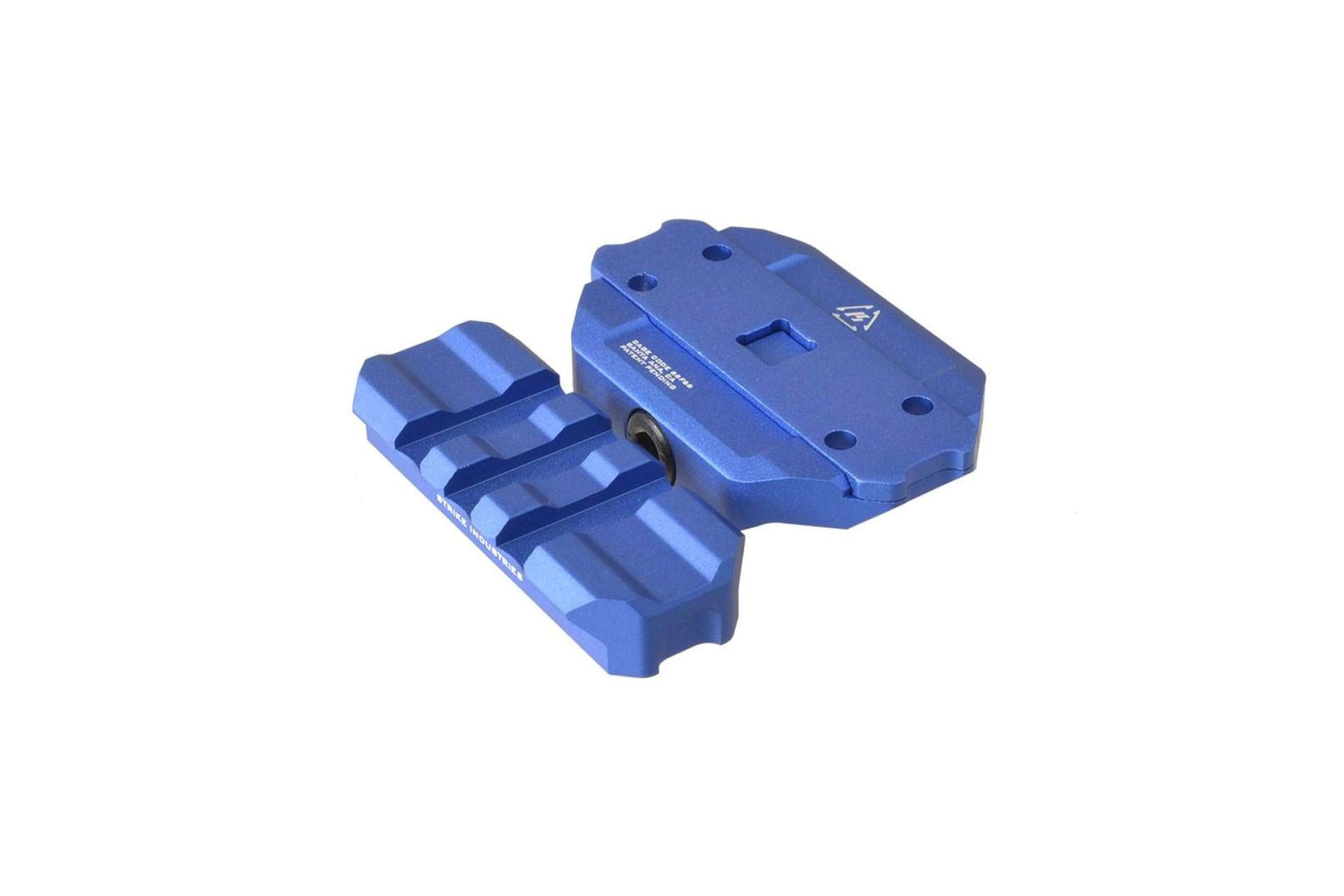

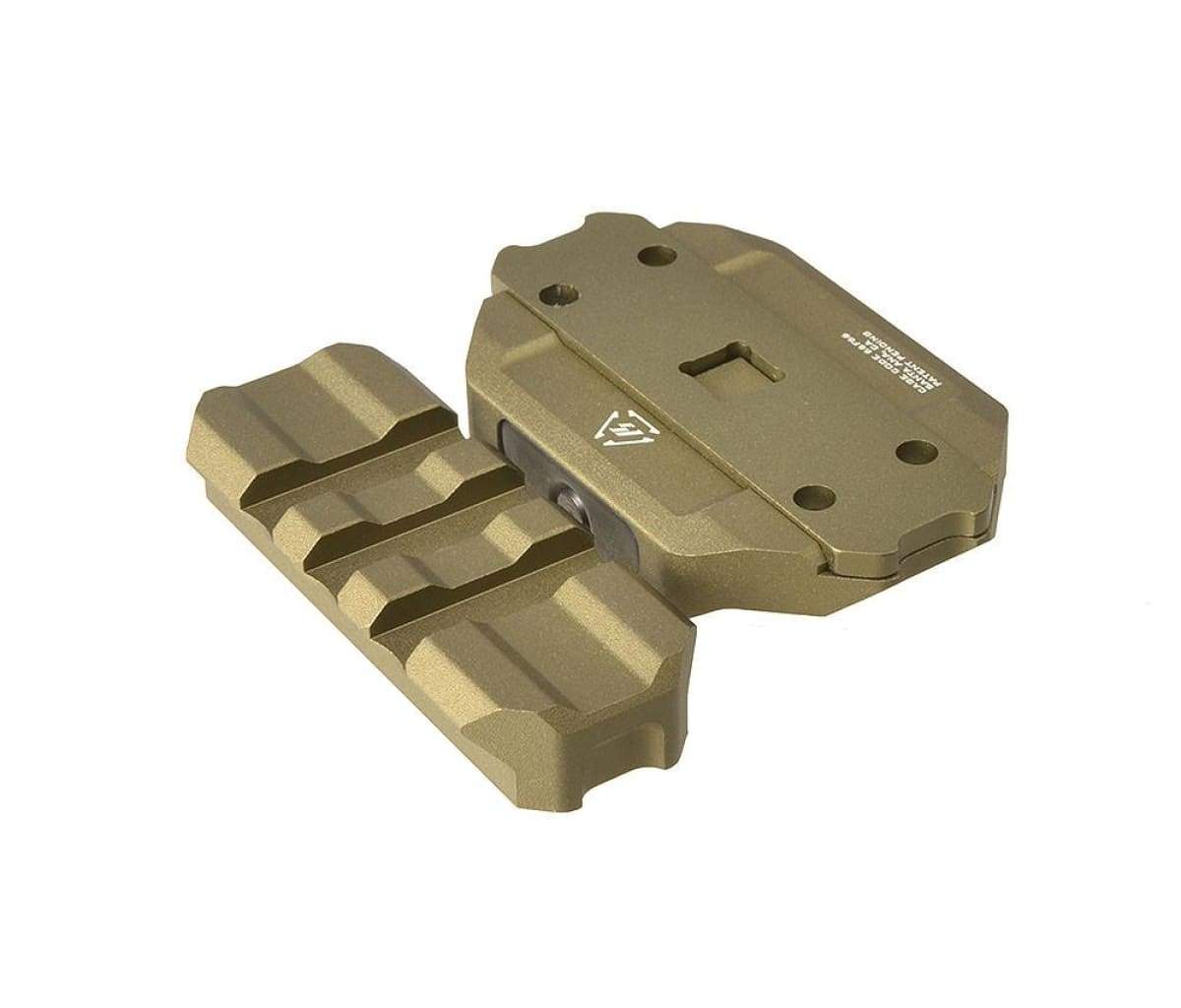

• Available color: Black, Blue, FDE, RED

Includes

• 1x Riser Base
• 1x M5x30mm Cap Head Hex Screw
• 2x 10x3x.48mm spring
• 1x Clamp
• 1x Spacer
• 1x Riser rail
• 4x M3x6mm button head hex screw

Instructions

• Use the included spacer in conjunction with the R.EX Mount for absolute co-witness with A2-height sights.
• Use R.EX Mount with no spacer to co-witness with Sidewinder Sights only.

Note: Medium Strength Loctite Recommended (Included).

Note: Uses a proprietary Picatinny rail design. Will work with most mil-spec 1913-style rail attachments, however.

M3 Screw Torque Specs: Do not exceed 10 inch-lbs, and hand-tighten only by holding onto the short end of the allen key included.

M5 Bolt Torque Limit = 25 inch lbs maximum with thread locker.
