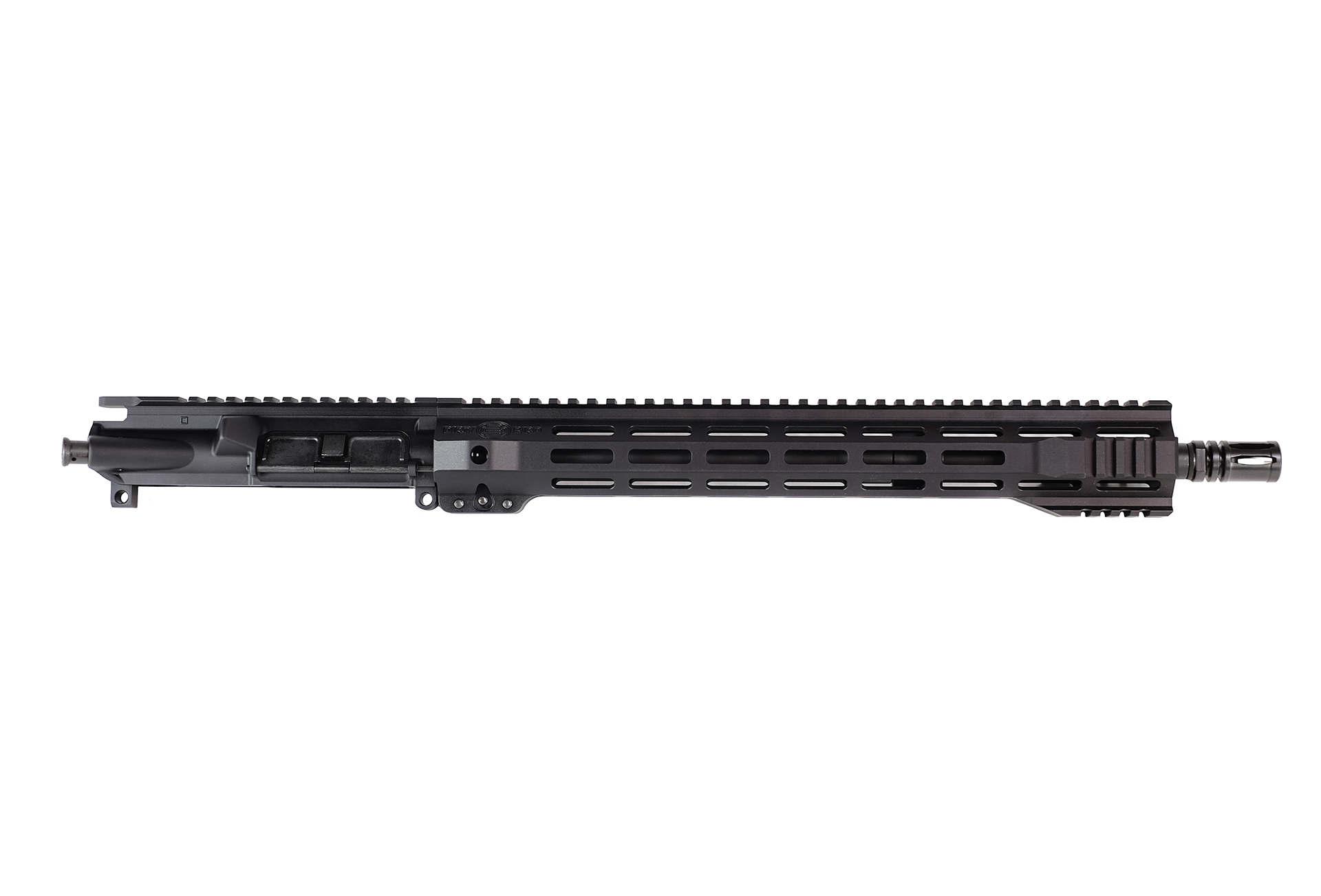

Dirty Bird 16″ 5.56 NATO Govt M-LOK AR-15 Complete Upper Assembly V3

Dirty Bird 16″ 5.56 NATO Govt M-LOK Upper Assembly V3

This Dirty Bird Industries Complete Upper features a Black Nitride 16″ Sub-MOA Government Profile barrel chambered in 5.56 with a 1:7 twist. Built on a top-tier t-marked Forged Upper Receiver and finished with the brand new Dirty Bird’s Gen 3 15″ SMRS M-LOK Handguard, containing several mounting upgrades, available in several color options. No corners are cut when manufacturing these complete uppers. All barrels are dimpled and cold blued, and a black nitride 4140 steel gas block and a stainless steel gas tube are used. The gas block set screws feature knurled cone tops and are installed using blue locktite ensuring that no amount of firing will cause the set screws to come loose but they will still able to be removed for servicing if needed. This build will include one of Dirty Bird’s enhanced BCGs, individually High Pressure Tested and Magnetic Particle Inspected to ensure flawless operation in any AR-15 platform rifle or pistol.

NEW: The Dirty Bird SMRS Handguard features our new Rock Solid Patent Pending Anti-Slip / Anti-Lift attachment system. The clamp-on style of handguard attachment, utilized by many manufacturers, is secure and convenient, but one problem has always been that clamping the handguard tends to lift the front end of the handguard. The longer the handguard, the more drastic the effect. If you’ve ever had to bottom out a rail-mounted BUIS’s front-sight post to get the correct elevation, the issue is probably due to this “lift” phenomenon.

Barrel

• Chambered in 5.56 (will also function with .223)
• 16″ Government Profile w/ 1:7 Twist
• Mid-Length Gas System
• Black Nitride Finish
• High Pressure Tested and Magnetic Particle Inspected
• Sub-MOA Guarantee

Bolt Carrier Group

• Designed for use with both 5.56 and .223
• Strategically relocated load-bearing surfaces reduce carrier tilt/can’t during recoil, thus increasing reliability and longevity.
• Additional wall thickness in the gas exhaust port area for added strength and rigidity
• High Pressure Tested and Magnetic Particle Inspected

Handguard

• Tough
  • Machined from aircraft-grade 6061-T6 aluminum extrusions.
  • Anti-rotation tabs.
  • Type 3 hard anodizing or Cerakote sprayed at 1 mil thickness per spec.
• Versatile
  • M-LOK attachment slots on all sides (except top)
  • Full Top 1913 Picatinny Rail
  • 5 Slot Rail Sections at the 3, 6, and 9 o’clock positions
  • Raised QD attachment points at the 3 and 9 o’clock positions.
• Practical
  • Aircraft-grade aluminum barrel nut. In our tests, the aluminum barrel nuts were just as effective when torqued to spec. Additionally, the weight savings enabled us to utilize a longer barrel nut design, which means more surface area at the attachment point without adding unnecessary weight.

Upper Receiver

• Precision Machined from top-tier 7075-T6 Aluminum Forgings (forge marks may vary)
  • Not all forged uppers are created equal, and we only use the best for our uppers, meaning they will be free from excessive pitting, machined to spec, and finished with quality (not purple or chalky) hard coat anodizing.
• M4 Feedramps

Charging Handle

• Mil-Spec Style
• 6061-T6 Billet Aluminum
• Smooth Operation and Positive Grip under Extreme Conditions
• Type 3 Class 2 Hard Coat Anodizing

Available Handguard Colors: Black, Magpul FDE, Magpul OD Green, Midnight Bronze

Made in the USA – Backed by Dirty Bird Industries’ Limited Lifetime Warranty
