Dirty Bird AR-15 ASAL Free Float Quad Rail
Dirty Bird AR-15 ASAL Free Float Quad Rail

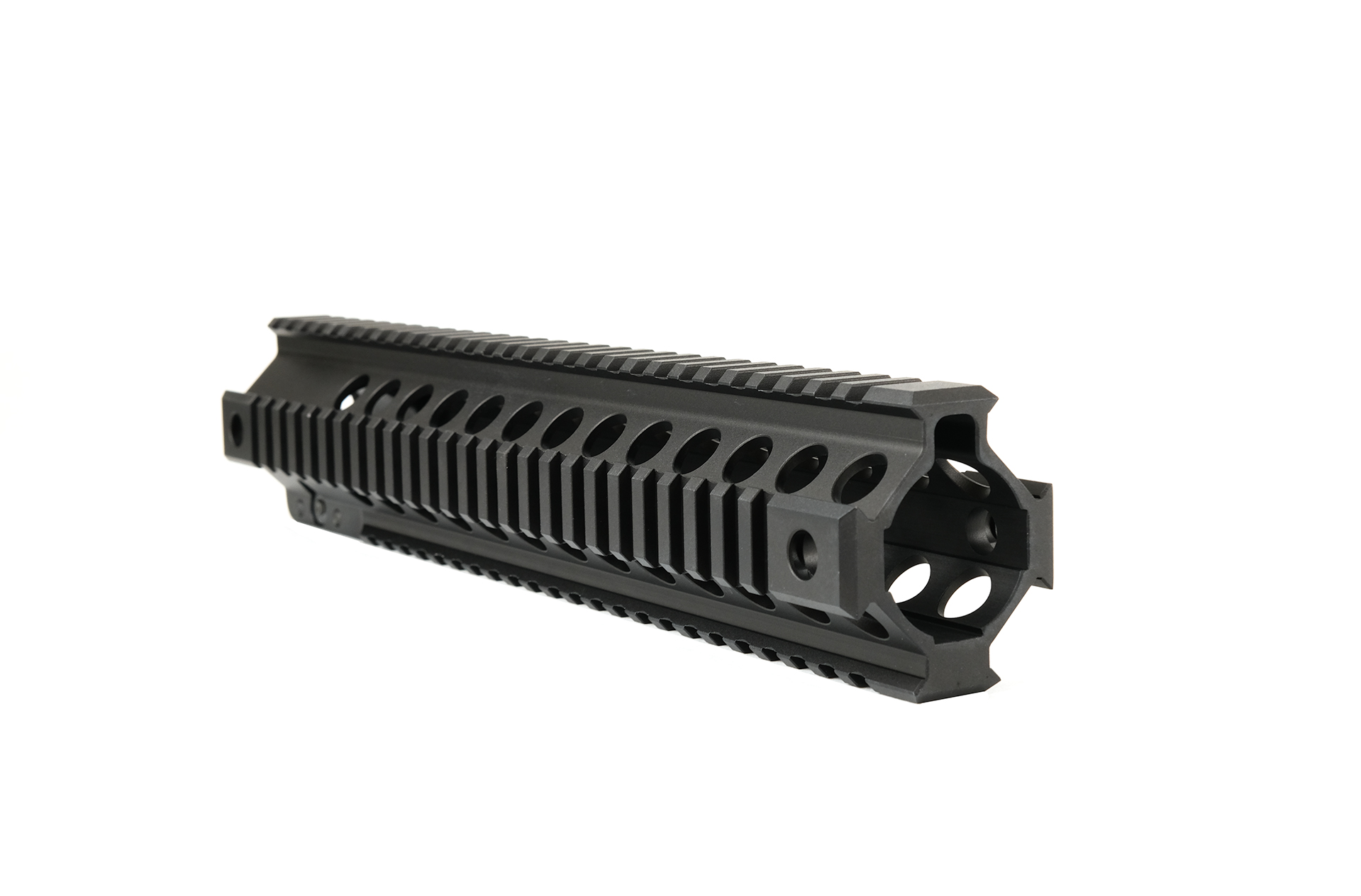

The Dirty Bird Free Float Quad Rail is a no-nonsense, American-made rail system designed for versatility and simplicity. It features a monolithic top rail and is precision machined from 6061-T6 aluminum extrusions. Next, it is type 3 hard-coat anodized, ensuring that this handguard can withstand an incredible amount of abuse. Front and Rear Sling Swivel Attachment Points are integrated into both the left and right side rails and are designed to limit the swivel’s rotation, preventing twists and tangles in slings. The handguard is fully dehorned and deburred. It is a true do-anything rail system, and the cost-value ratio makes it very hard to pass up.
- Available in a 9.35″ and 12″ length.
- 6061-T6 Aluminium
- Type 3 Hard Coat Anodizing
- 1018 Steel Barrel Nut
- ASAL Attachment System
ASAL Attachment System Report
Eliminating Handguard Slip
The shockwave generated when firing an AR-15 creates over 1000 Gs of acceleration. This means that a one-pound part will generate over 1000 pounds of force every time the rifle is fired. Combined with the thermal cycling generated when firing multiple rounds, it can be challenging to keep a handguard from slipping forward or rotating. Many attempts have been made to solve this problem. Some solutions are overly complex, resulting in complicated installation and high manufacturing costs. Some designs, such as the popular key seat, are overly simplistic. The key seat will stop a handguard from coming completely off of the rifle; however, it still allows some forward slip and 360 degrees of rotation.
Handguard Lift
Free-floating handguard mounting systems tend to produce an upward lift of the handguard, resulting in the muzzle end of the handguard floating higher than the receiver end. This lift can adversely affect the rifle’s performance, especially when using iron sights. Even if the handguard is only used for protecting your hand, a small amount of lift is noticeable when aiming down the sightline. This visually makes the rifle seem crooked. Even if the gun performs with precision, it can create an optical illusion, thereby reducing accuracy.
Solution
The patent-pending ASALTM (Anti-Slip / Anti-Lift) system is simple, easy to install, easy to manufacture, and a cost-effective solution to handguard slip and lift issues. The ASALTM system secures the handguard to the barrel nut using a CamLokTM fastener, which features a 10-degree taper angle. This small taper creates a substantial mechanical advantage, significantly increasing the force generated by a standard screw. The mating groove in the barrel nut is offset so that as it is tightened, the handguard is pressed against the upper. This mitigates lift while also preventing slipping or rotation around the barrel’s axis. The result is a handguard that will not slip, rotate, or lift.
The result is a 10x decrease in handguard muzzle end lift.
Made in the USA
Dirty Bird Industries’ Limited Lifetime Warranty

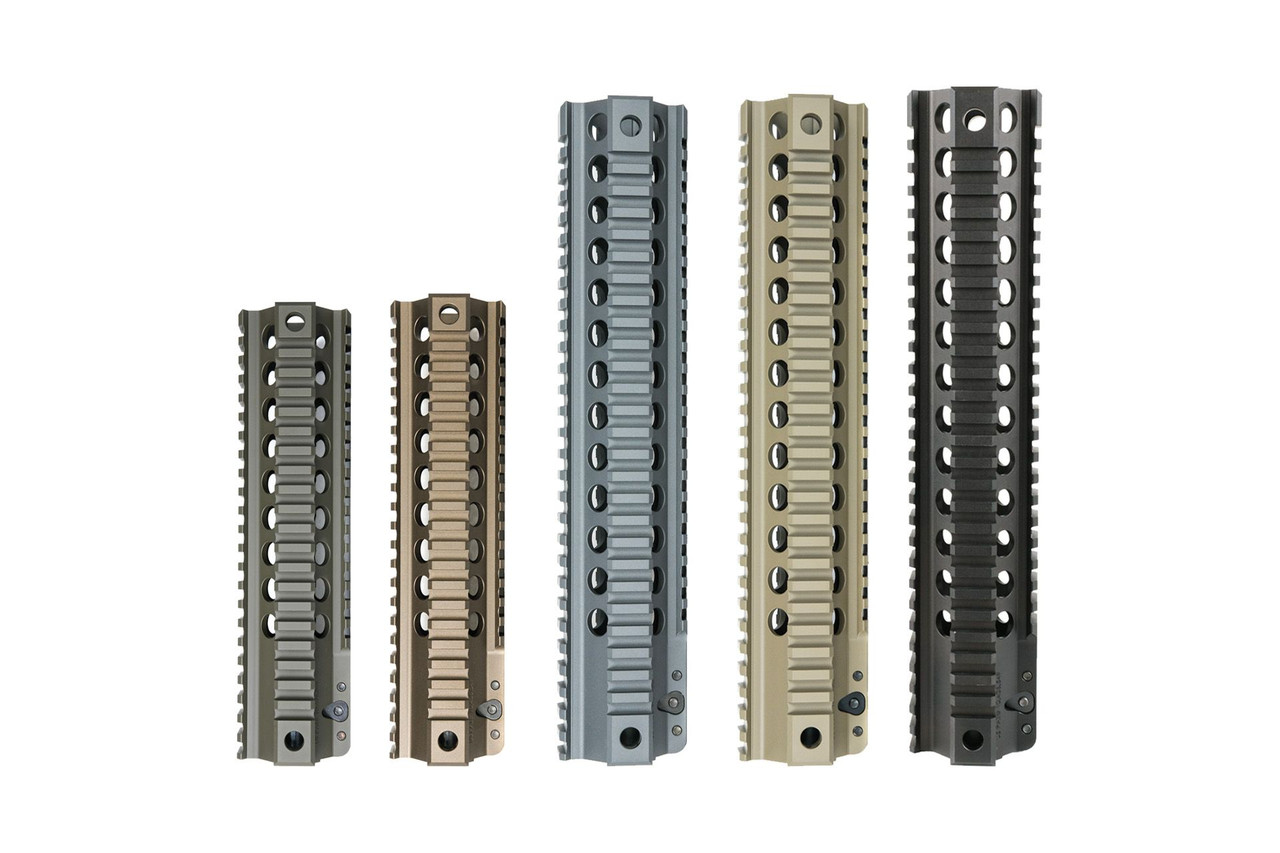

Available Colors
Black, Magpulâ„¢ FDE, Magpulâ„¢ OD Green, Midnight Bronze, Sniper Grey
| Weight | 22.1 oz |
|---|---|
| Dimensions | 11.35 × 3 × 3 in |
| Length | 12, 9.35 |
| Color | Black, FDE, Midnight Bronze, OD Green, Sniper Grey |
| UPC | 810084372388,810084372333,810084372357,810084372395,810084372371,810084372418,810084372364,810084372401,810084372326,810084372340 |
Compliance
NFA (National Firearms Act) compliance is crucial for legal ownership and transfer of regulated firearms and accessories like short-barreled rifles, suppressors, and certain types of ammunition, ensuring adherence to federal regulations to avoid legal penalties and ensure responsible firearm ownership.
