Leupold Mark 4HD (30mm) M5C3
Professional-grade 1-4.5x LPVO available in different reticle options
Leupold Mark 4HD (30mm) M5C3
The Leupold Mark 4HD 1-4.5×24 combines a compact low-power variable design with professional-grade optical performance and a durable 30mm main tube. Its 1-4.5x magnification range provides a wide field of view at low power while still offering additional magnification for more precise aiming at distance. All three configurations use a second focal plane reticle and share the same lightweight 18-ounce, 10.7-inch platform.
This listing includes three distinct configurations so customers can select the reticle and adjustment system that best fits their application. Choose the M1C3 HPR-1 for a non-illuminated, MOA competition-oriented setup; the FireDot BDC for an illuminated BDC reticle with capped adjustments;Â or the M5C3 FireDot TMR for an illuminated MIL-based reticle with a locking elevation dial.
Features
- 1-4.5x variable magnification
- 24mm objective lens
- 30mm main tube
- Second focal plane reticles
- Professional-Grade Optical System
- Wide 118.8 ft field of view at 1x
- 3.7-3.9 in. eye relief
- 165 MOA total elevation and windage adjustment range
- Waterproof, fogproof, and shockproof construction
- Integrated throw lever
- Lightweight 18 oz design
- Multiple reticle and turret configurations available
Specifications
- Manufacturer: Leupold
- Series: Mark 4HD
- Magnification: 1-4.5x
- Objective Lens Diameter: 24mm
- Maintube Diameter: 30mm
- Focal Plane: Second Focal Plane
- Weight: 18 oz
- Length: 10.7 in.
- Field of View at 1x: 118.8 ft @ 100 yds
- Field of View at 4.5x: 25.2 ft @ 100 yds
- Eye Relief at Low Power: 3.7 in.
- Eye Relief at High Power: 3.9 in.
- Elevation Adjustment Range: 165 MOA / 48 MIL
- Windage Adjustment Range: 165 MOA / 48 MIL
- Fixed Parallax-Free Distance: 150 yds
- Finish: Matte Black
Available Variants
| Variant | Part # | Reticle | Illumination | Elevation Adjustment |
|---|---|---|---|---|
| M1C3 SFP HPR-1 | 183314 | HPR-1 | No | M1C3, 1/4 MOA, locking |
| SFP Illum. FireDot BDC | 183315 | FireDot BDC | Yes | Capped, 1/4 MOA |
| M5C3 SFP Illum. FireDot TMR | 183316 | FireDot TMR | Yes | M5C3, 0.1 MIL, locking |
The illuminated FireDot BDC and FireDot TMR versions use a CR2032 battery and provide eight illumination settings. The HPR-1 version is non-illuminated and uses Leupold’s M1C3 adjustment system.
Variant Details

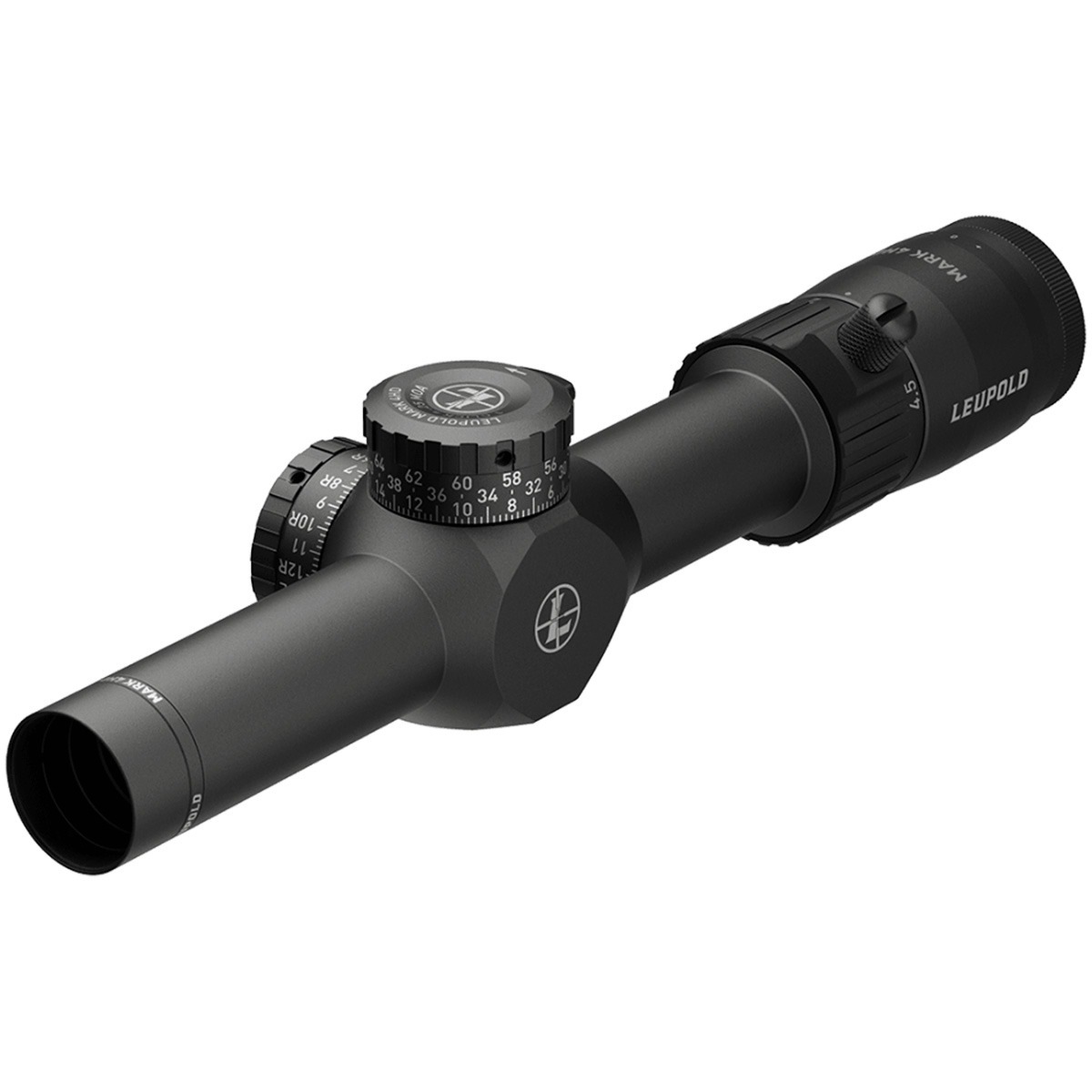

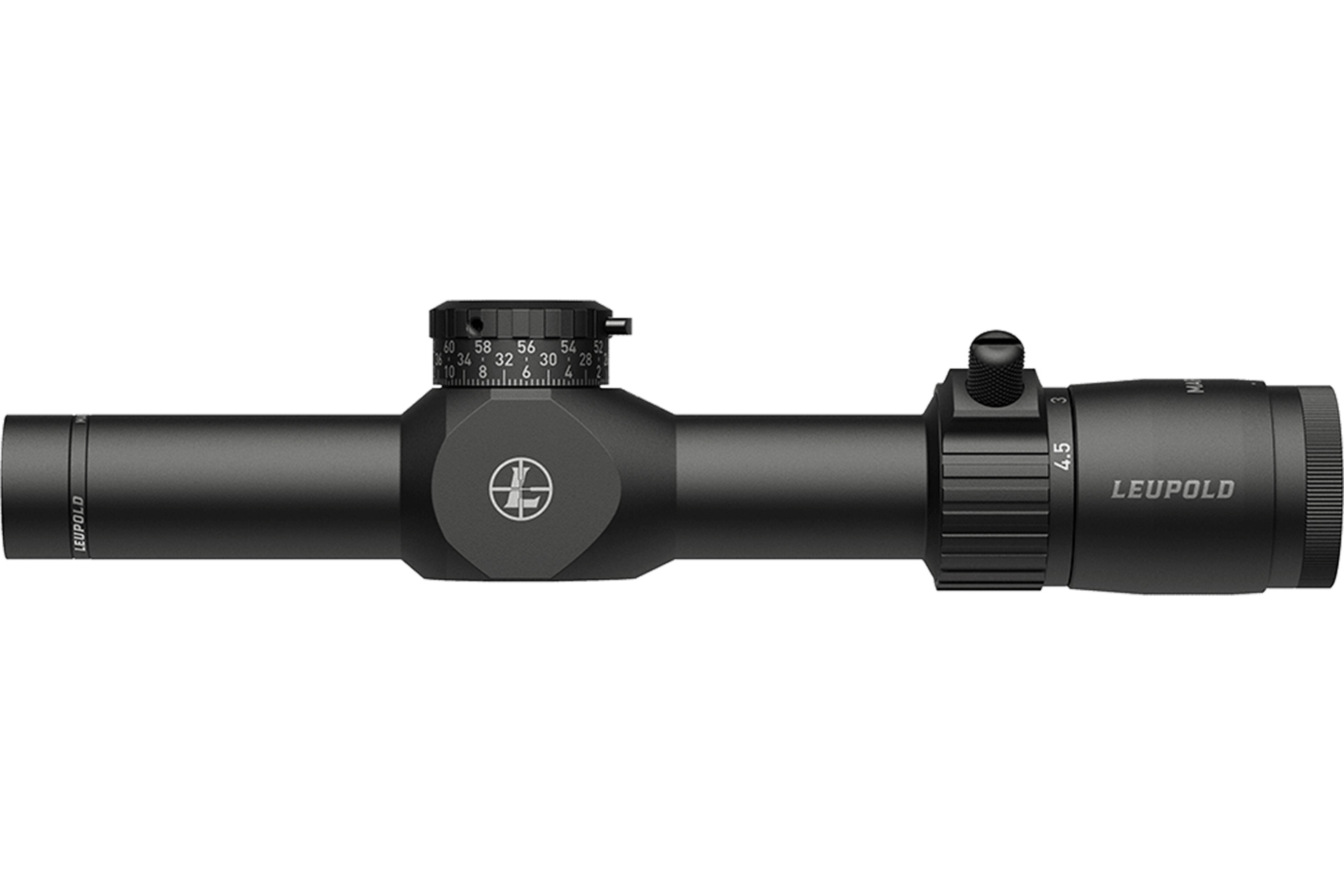

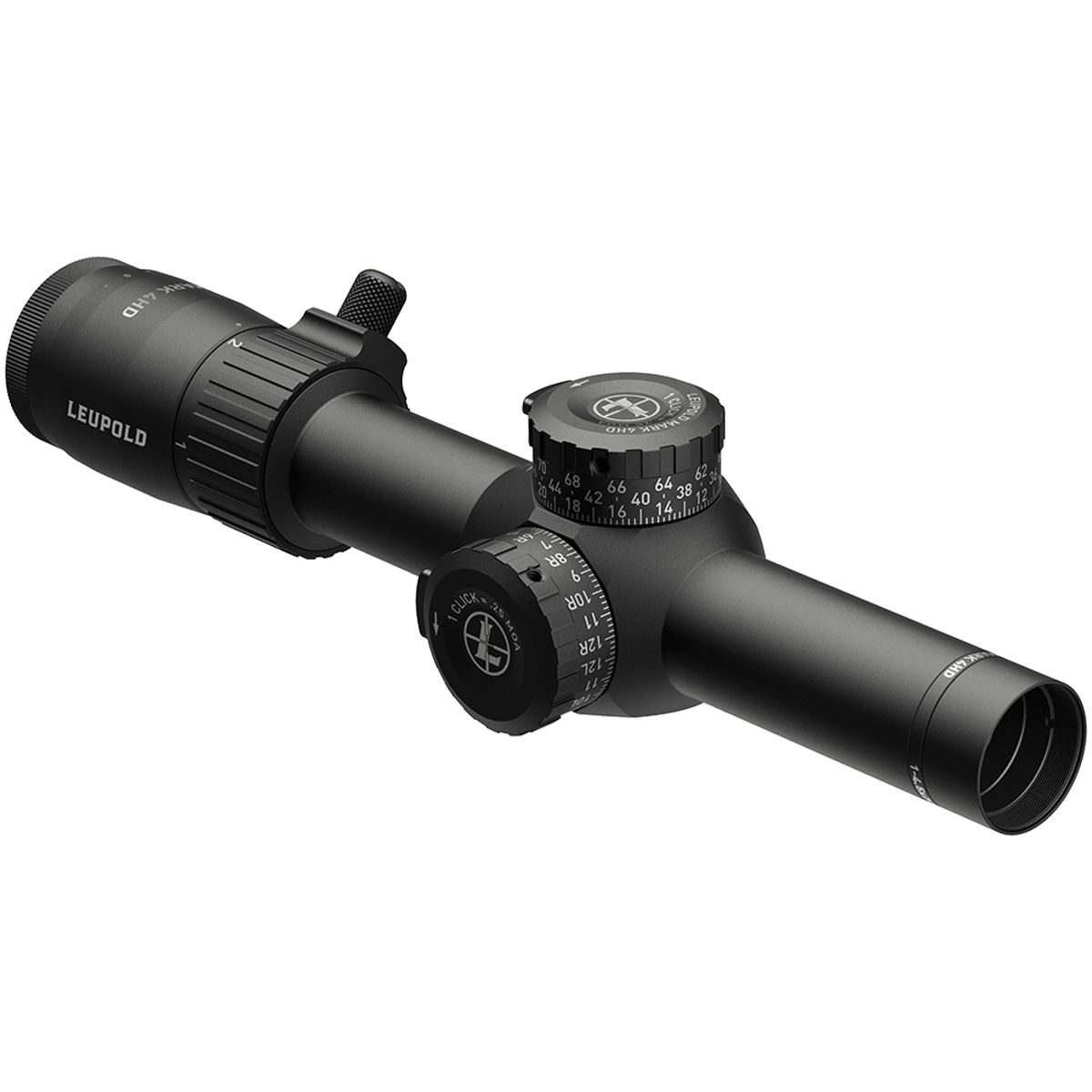

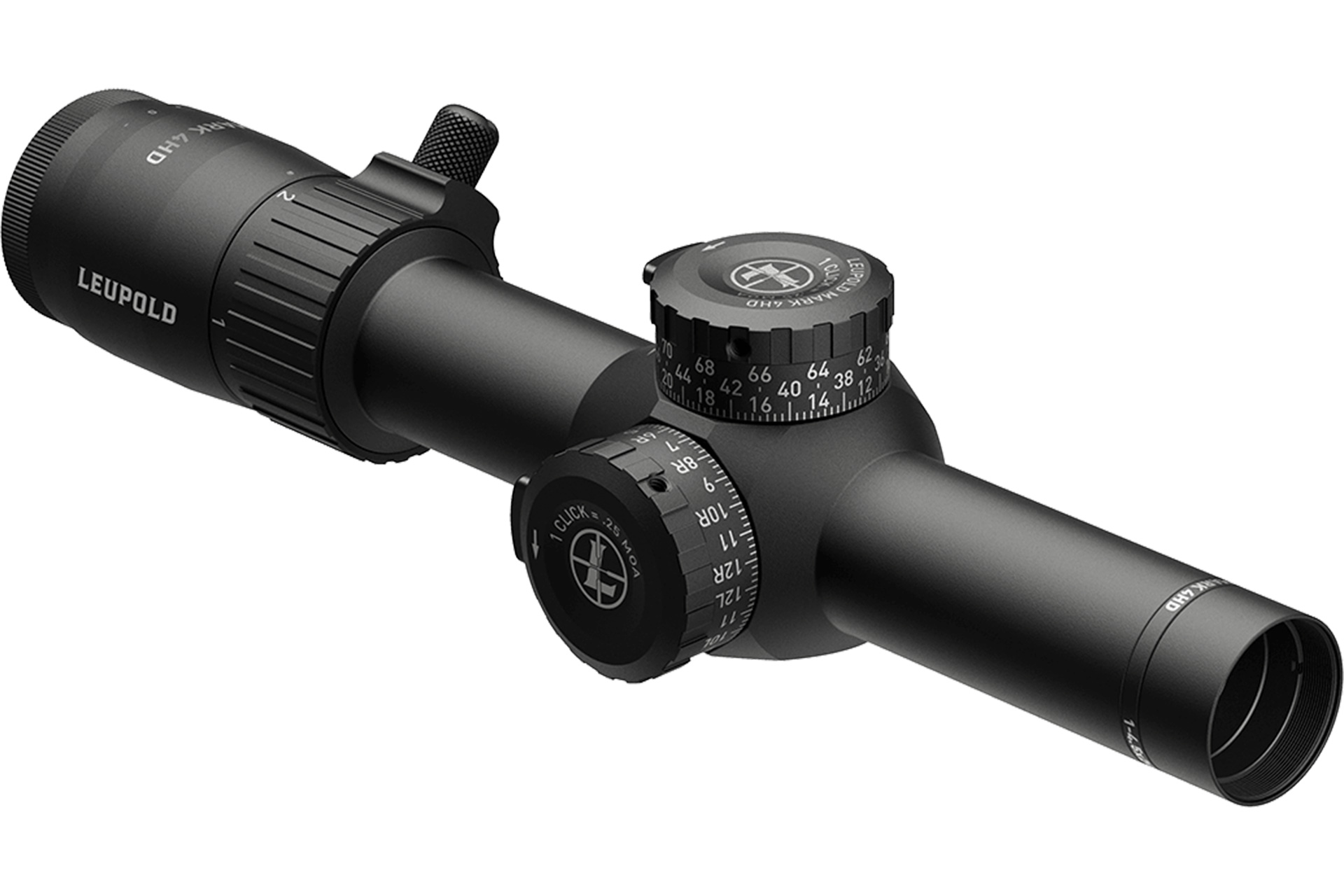

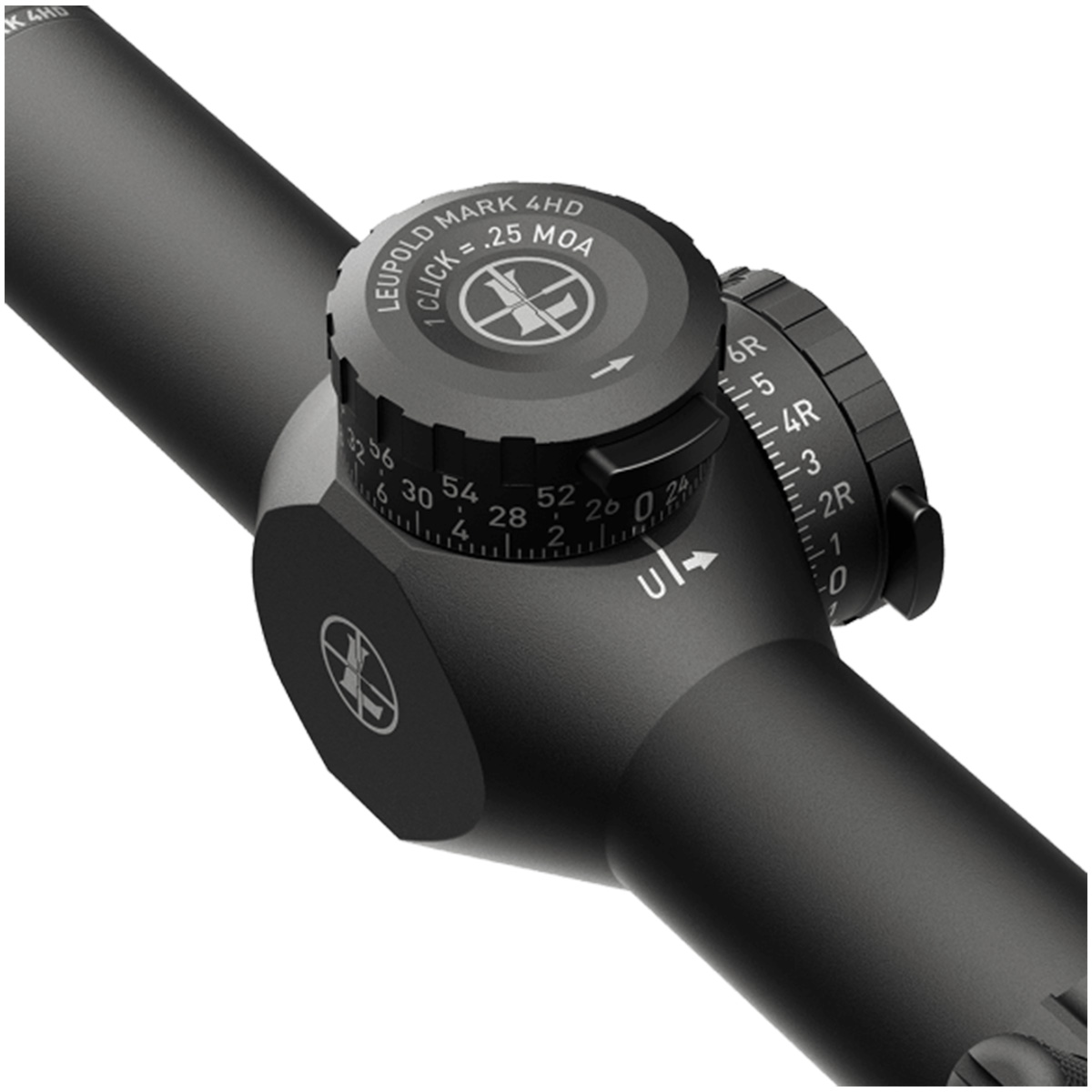

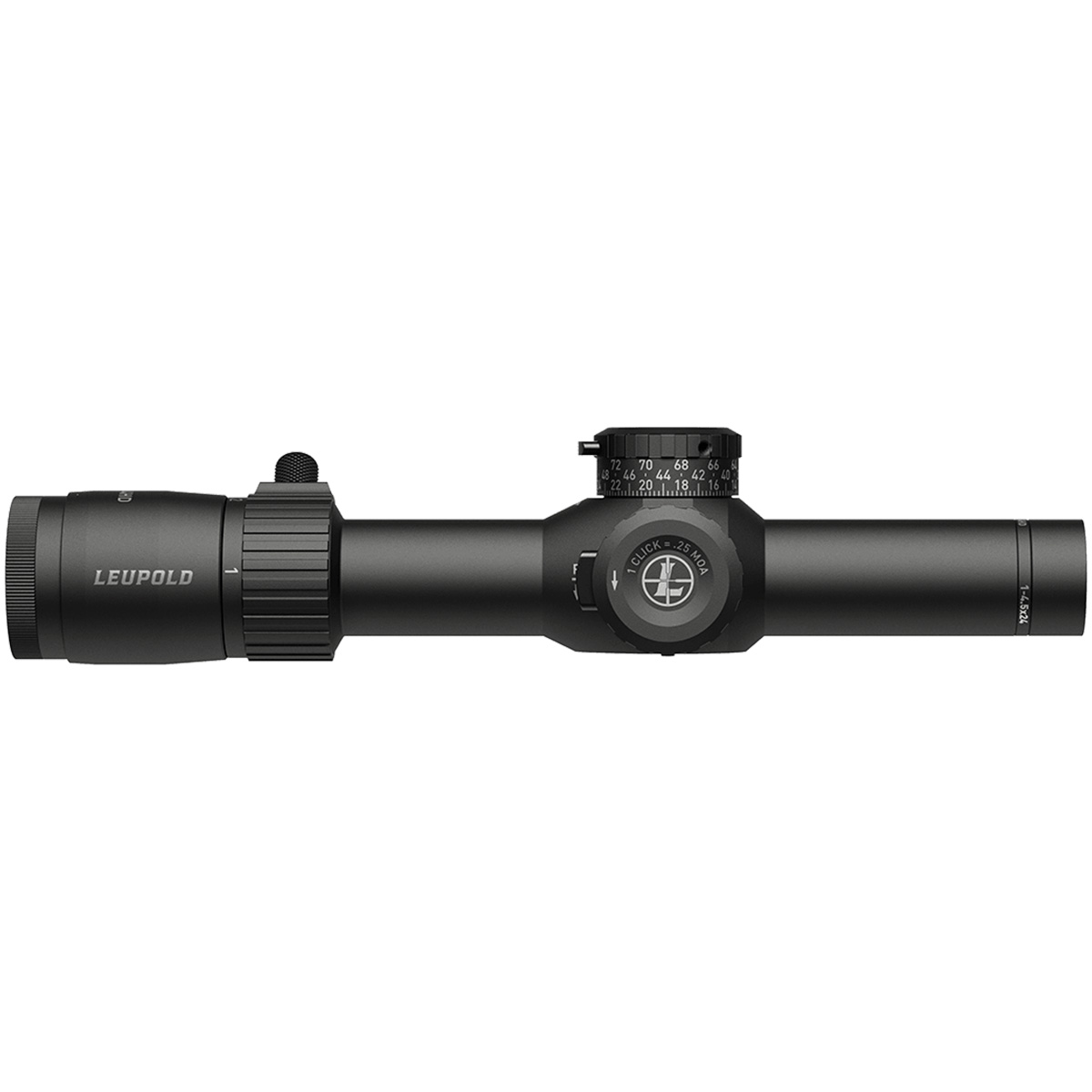

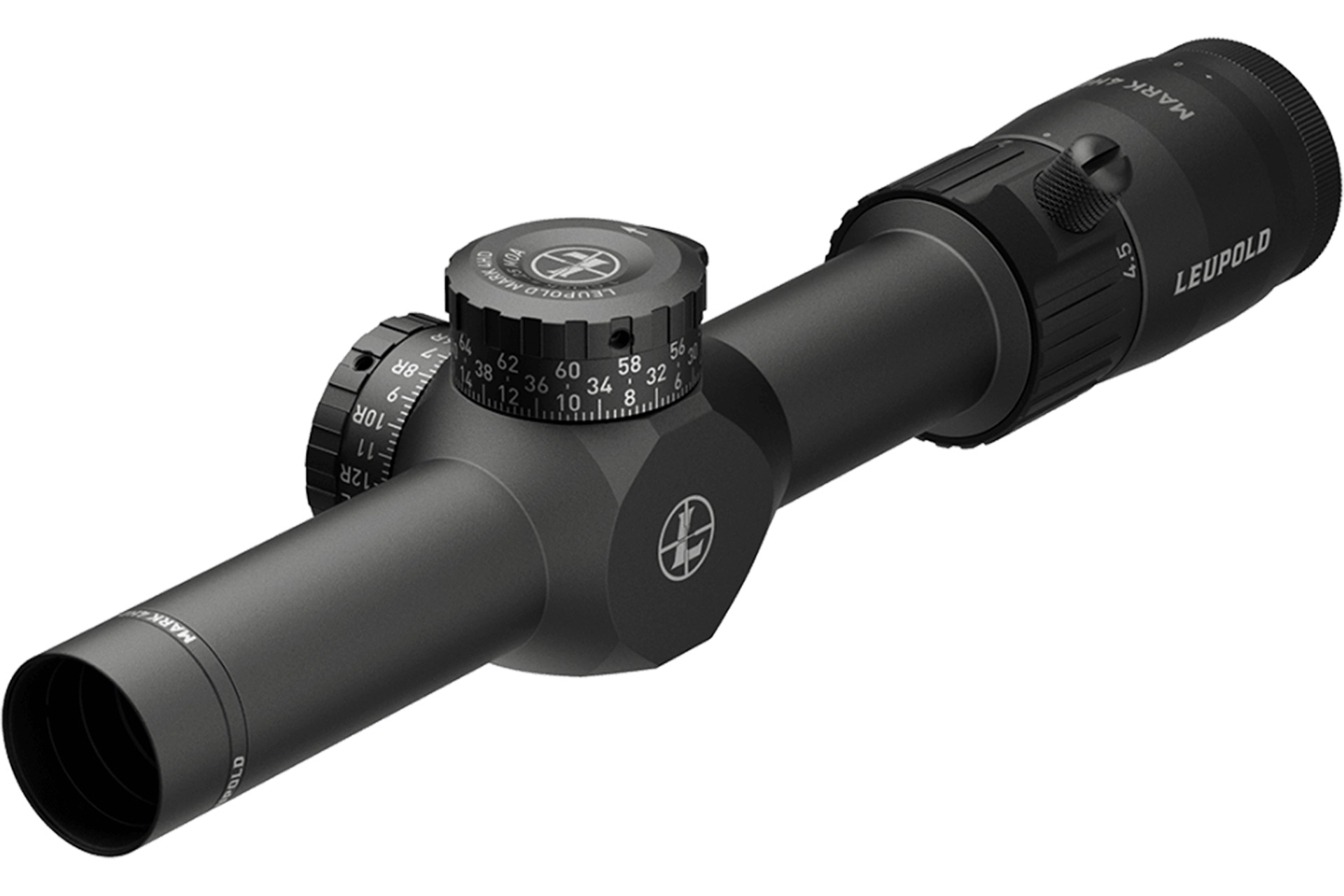

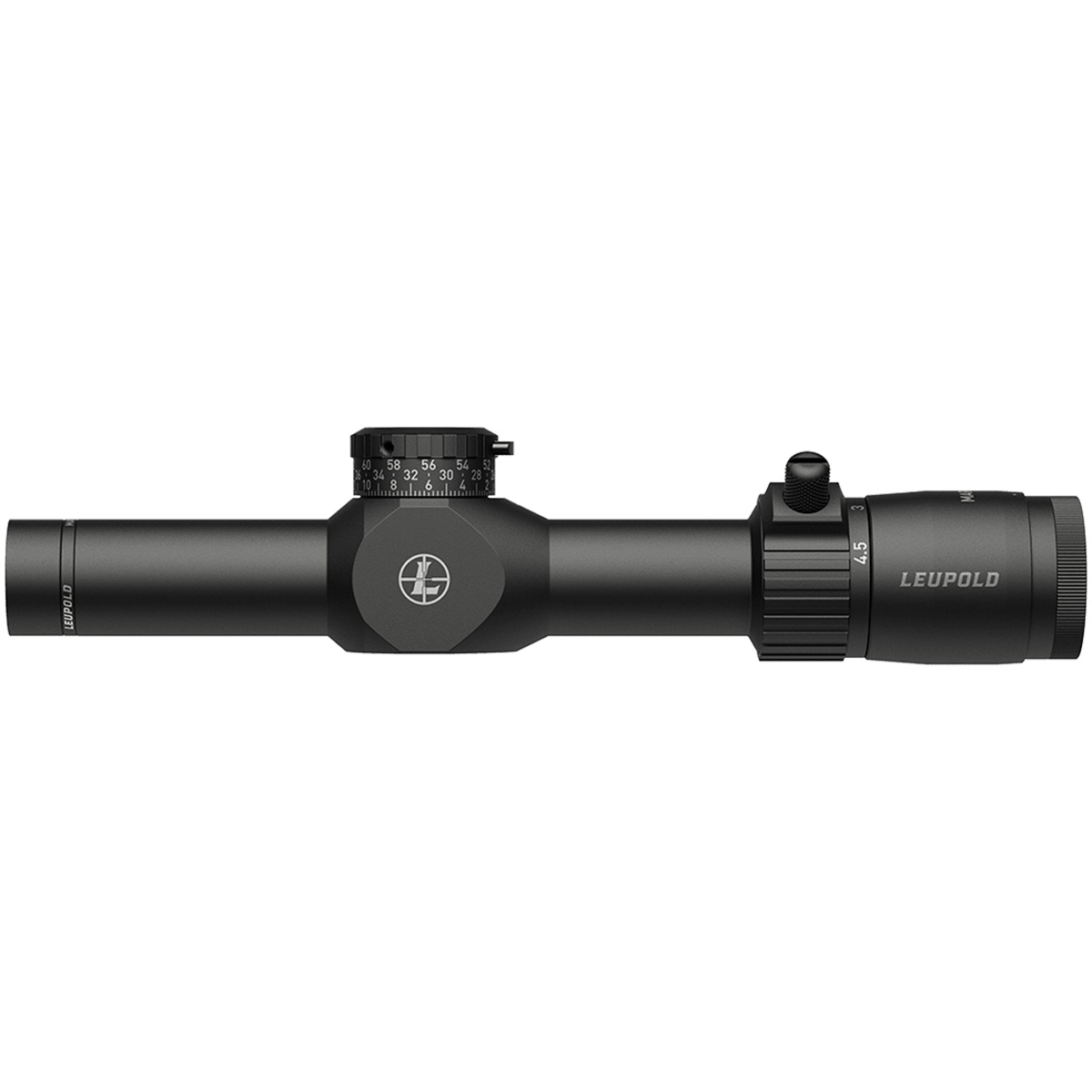

M1C3 SFP HPR-1 – Part #183314
- HPR-1 second focal plane reticle
- Non-illuminated
- M1C3 elevation dial
- 1/4 MOA adjustments
- ZeroLock windage
- Designed with a 0.5 MOA center dot and circular reference features

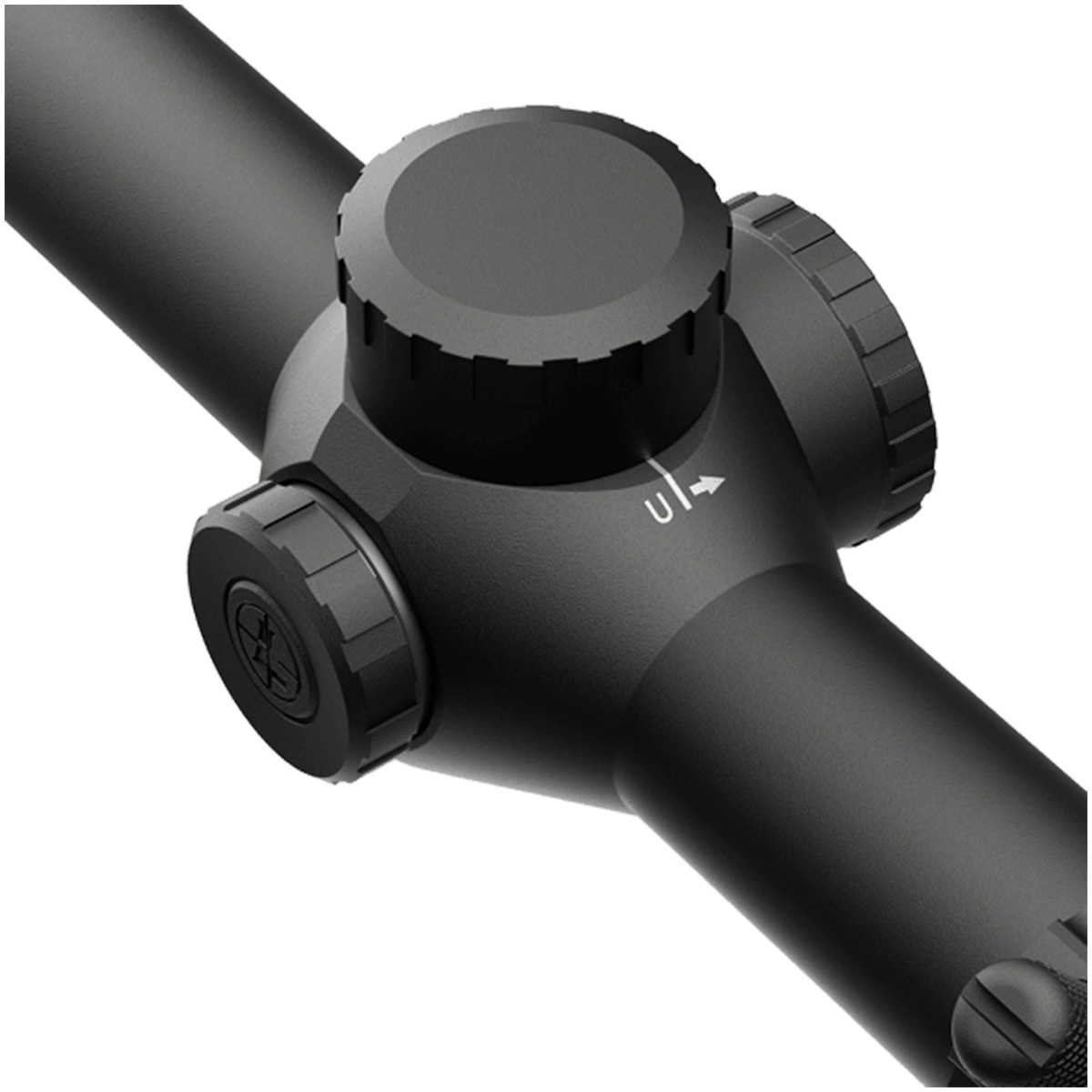

SFP Illuminated FireDot BDC – Part #183315
- Illuminated FireDot BDC reticle
- Capped elevation and windage adjustments
- 1/4 MOA click value
- Eight illumination settings
- CR2032 battery
- Daylight-bright illumination

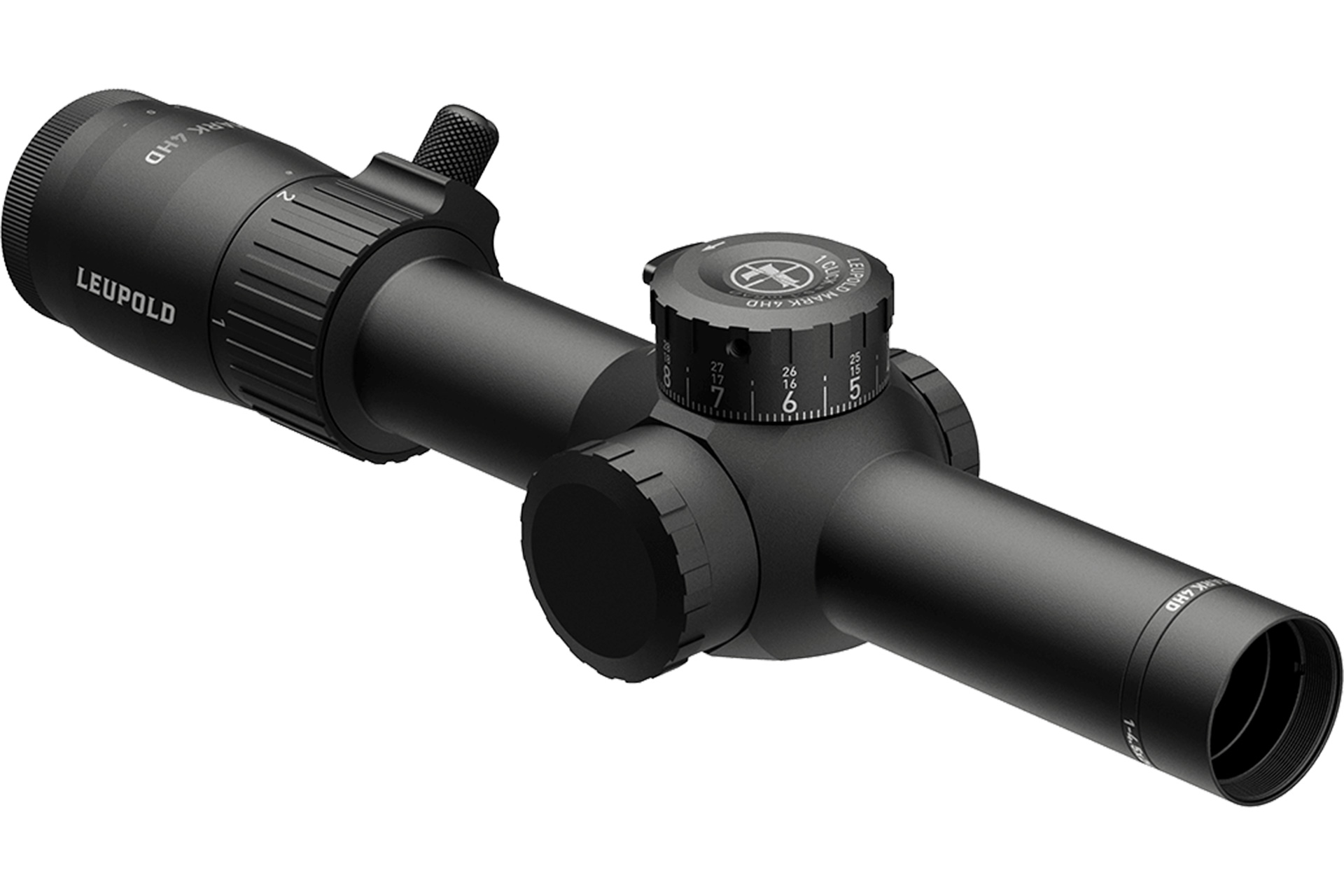

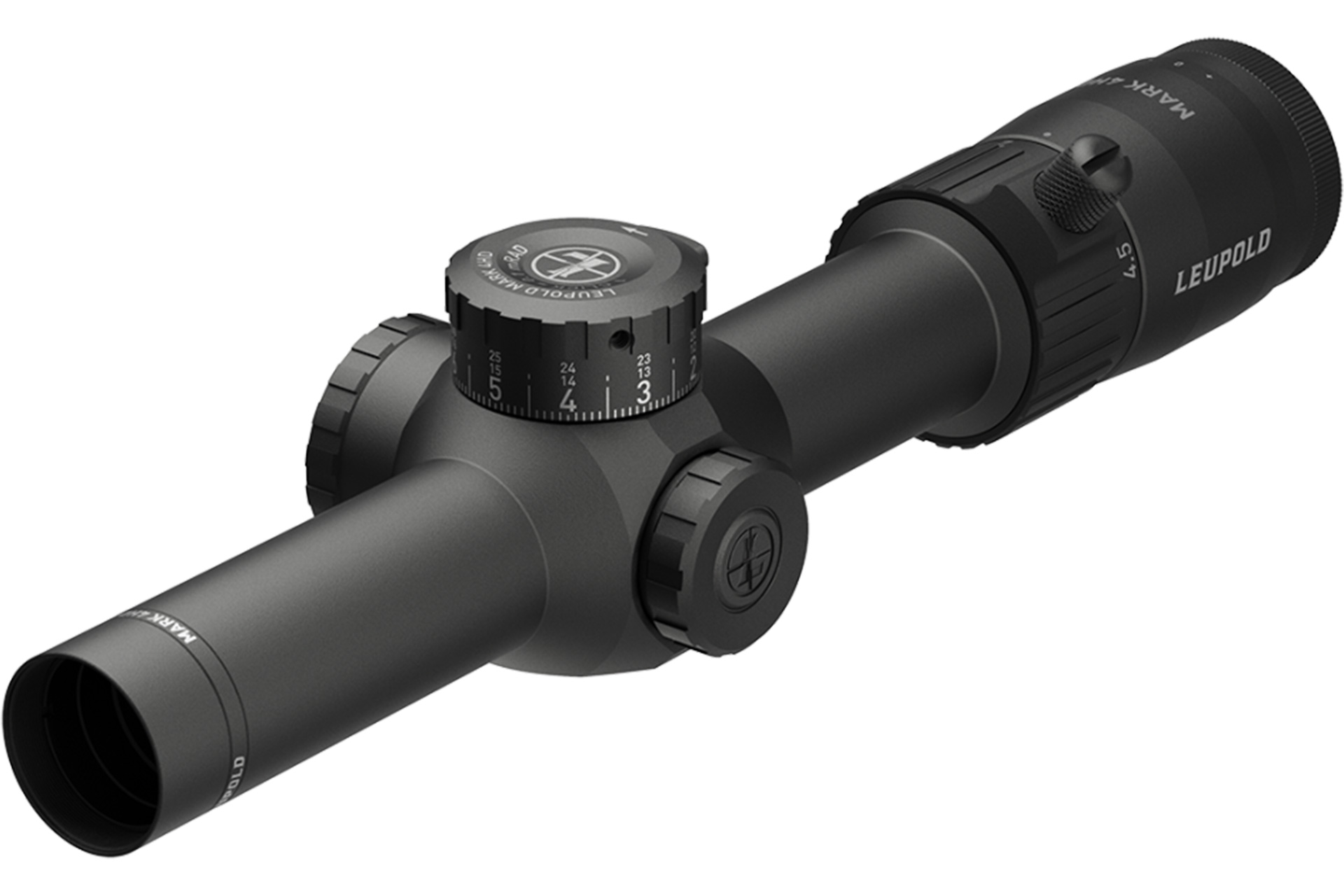

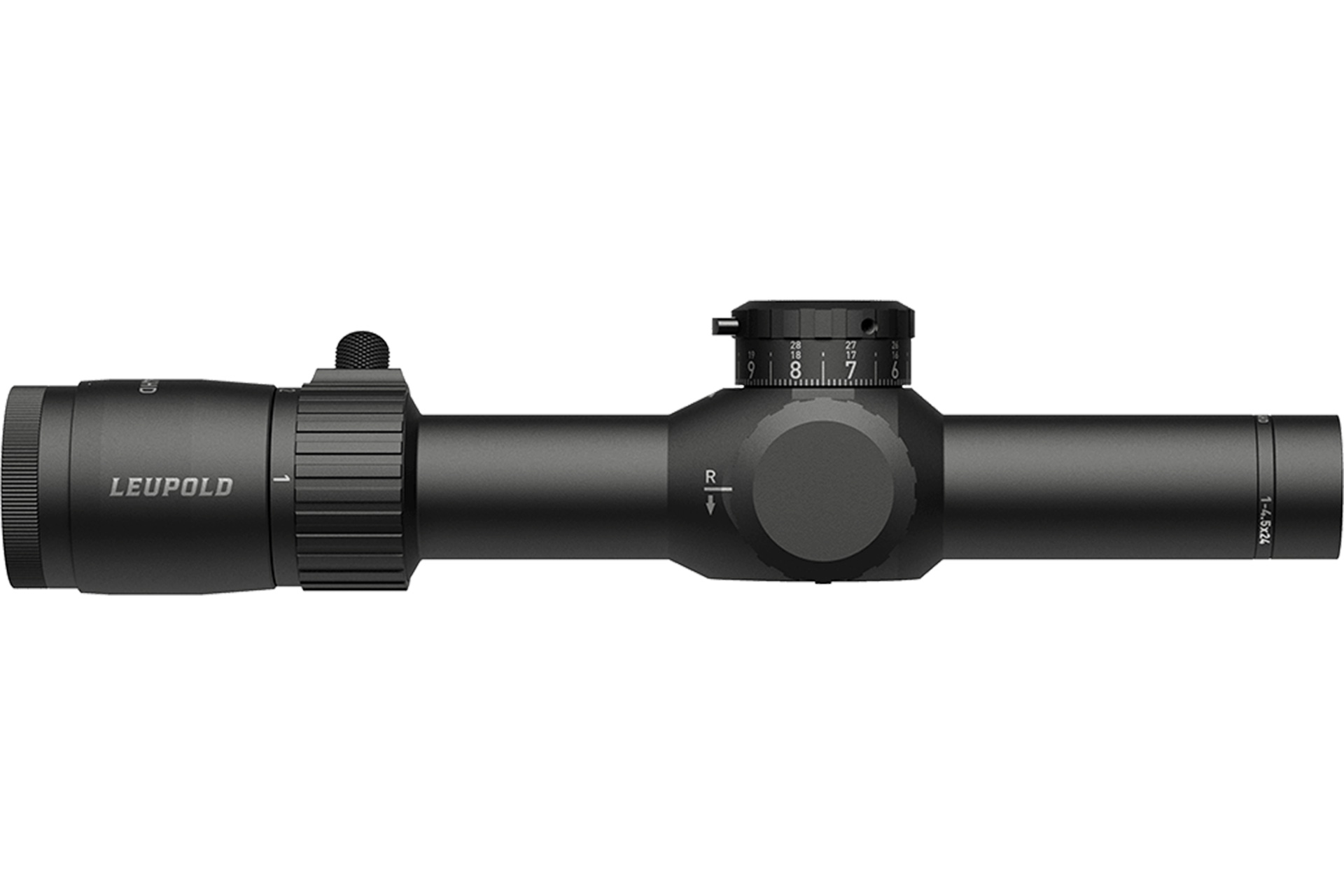

M5C3 SFP Illuminated FireDot TMR – Part #183316
- Illuminated FireDot TMR reticle
- M5C3 locking elevation dial
- 0.1 MIL adjustments
- Revolution indicator
- Eight illumination settings
- CR2032 battery
- Daylight-bright illumination
| Weight | 21.5 oz |
|---|---|
| Dimensions | N/A |
| Reticle | HPR-1, Illum. FireDot Bullet Drop, Illum. FireDot TMR |
| Tube Diameter | 30mm |
| Focal Plane | Second Focal Plane |
| Maximum Magnification | 4 |
| Minimum Magnification | 1 |
| Objective Diameter | 24mm |
| MPN | 183315,183314,183316 |
| UPC | 030317036348, 030317036331, 030317036324 |
